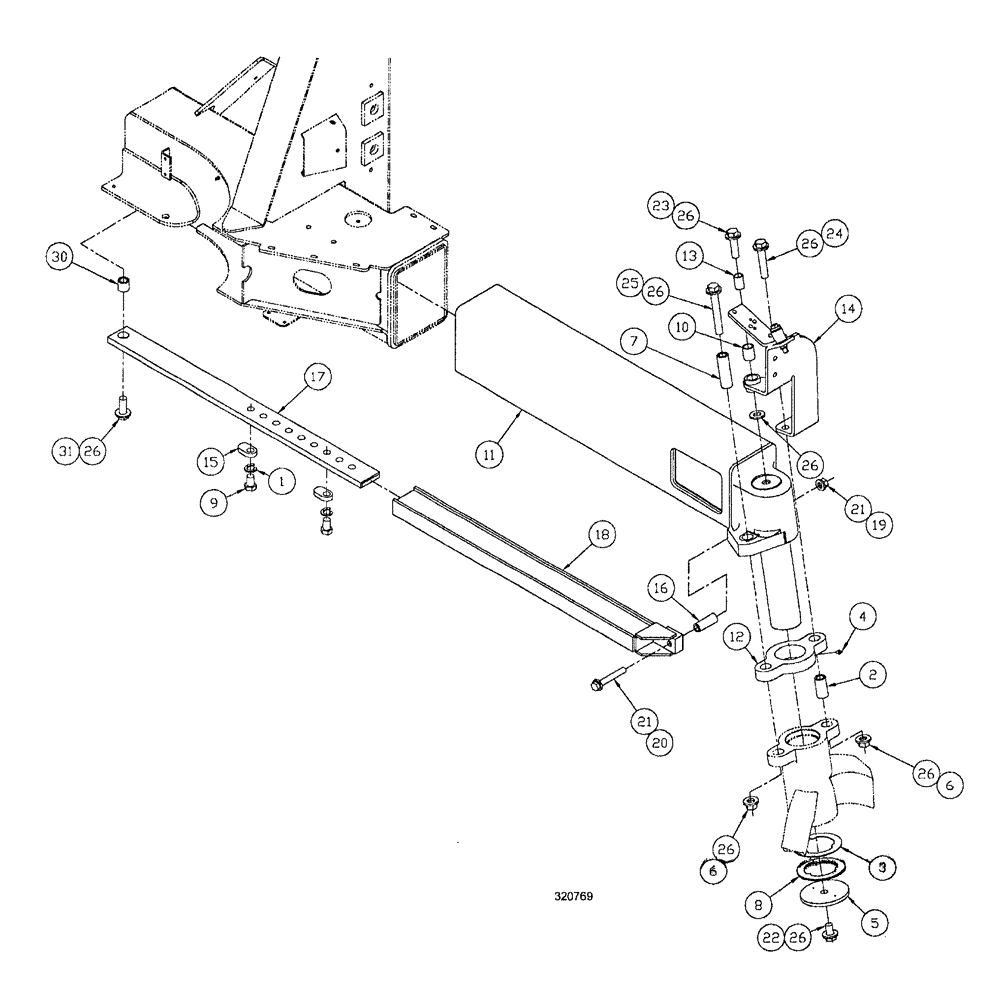

Запчасти Case IH SPX3200 (04-036) - AXLE ASSEMBLY-NON STEER LR (27) - REAR AXLE SYSTEM

1

BN300528

LOCK WASHER

M20, 10.9

2шт.

2

BN301997

DOWEL

hollow

1шт.

3

BN322975

WASHER

thrust

1шт.

4

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

1шт.

5

BN302052

WASHER,20.32mm ID x 139.7mm OD

1шт.

6

264031

NUT,M20 x 2.5, Cl 10

2шт.

7

BN323822

DOWEL

1.25 od x .810 id x 4.035" long

1шт.

8

BN322976

WASHER

thrust

1шт.

9

614-20035

BOLT,Hex, M20 x 2.5 x 35mm, Cl 8.8, Full Thd

2шт.

10

BN307708

BUSHING

UHMW hose

1шт.

11

BN322320

AXLE

RH

1шт.

12

BN312634

SPACER

Non-Steer

1шт.

13

BN313691

BUSHING

tube

1шт.

14

NSS

NOT SOLD SEPARAT

PIVOT HOSE MNT ASSY., LR

1шт.

See Fig. 04-038

1шт.

15

BN320759

STOP

TAB, axle adjust

2шт.

16

BN322495

BUSHING

hardened

1шт.

17

BN321008

BAR

axle slide

1шт.

18

BN321027

SLIDE

axle adjust

1шт.

*19

832-46416

NUT,M16 x 2, Cl 8

1шт.

20

43874

BOLT,Hex, M16 x 110, 8.8

1шт.

21

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

2шт.

22

86624002

BOLT,Hex, M20 x 40mm, Cl 8.8

1шт.

23

814-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 8.8

1шт.

24

9843612

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

1шт.

25

84025013

BOLT,Hex, M20 x 140mm, Cl 10.9

1шт.

26

86639847

WASHER,21.8mm ID x 44.5mm OD x 5mm Thk

8шт.

30

BN301998

DOWEL

Hollow

1шт.

31

627-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

1шт.
