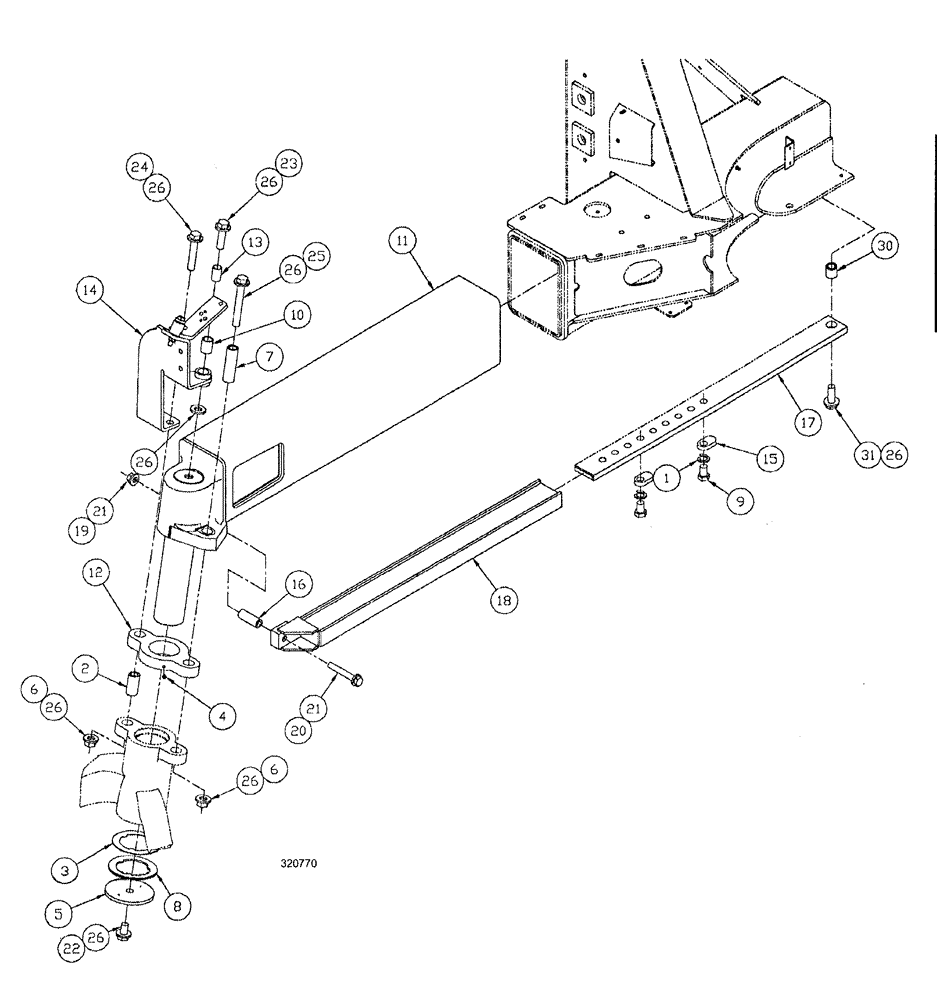

Запчасти Case IH SPX3200 (04-034) - AXLE ASSEMBLY-STEER RR (27) - REAR AXLE SYSTEM

1

BN300528

LOCK WASHER

M20, 10.9

2шт.

2

BN301997

DOWEL

hollow

1шт.

3

BN322975

WASHER

1шт.

4

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

1шт.

5

BN302052

WASHER,20.32mm ID x 139.7mm OD

1шт.

6

264031

NUT,M20 x 2.5, Cl 10

2шт.

7

BN323822

DOWEL

1.25 od x .810 id x 4.035" long

1шт.

8

BN322976

WASHER

thrust

1шт.

9

614-20035

BOLT,Hex, M20 x 2.5 x 35mm, Cl 8.8, Full Thd

2шт.

10

BN307708

BUSHING

UHMW hose

1шт.

11

BN322317

AXLE

L.H.

1шт.

12

BN312634

SPACER

Non-Steer

1шт.

13

BN313691

BUSHING

tube

1шт.

14

BN313761

ASSEMBLY

PIVOT, HOSE MNT ASSY., RR

1шт.

15

BN320759

STOP

TAB, axle adjust

2шт.

16

BN322495

BUSHING

hardened

1шт.

17

BN321008

BAR

axle slide

1шт.

18

BN321028

SLIDE

axle adjust

1шт.

19

832-46416

NUT,M16 x 2, Cl 8

1шт.

20

43874

BOLT,Hex, M16 x 110, 8.8

1шт.

21

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

2шт.

22

86624002

BOLT,Hex, M20 x 40mm, Cl 8.8

1шт.

23

814-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 8.8

1шт.

24

9843612

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

1шт.

25

84025013

BOLT,Hex, M20 x 140mm, Cl 10.9

1шт.

26

86639847

WASHER,21.8mm ID x 44.5mm OD x 5mm Thk

8шт.

30

BN301998

DOWEL

Hollow

1шт.

31

627-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

1шт.
