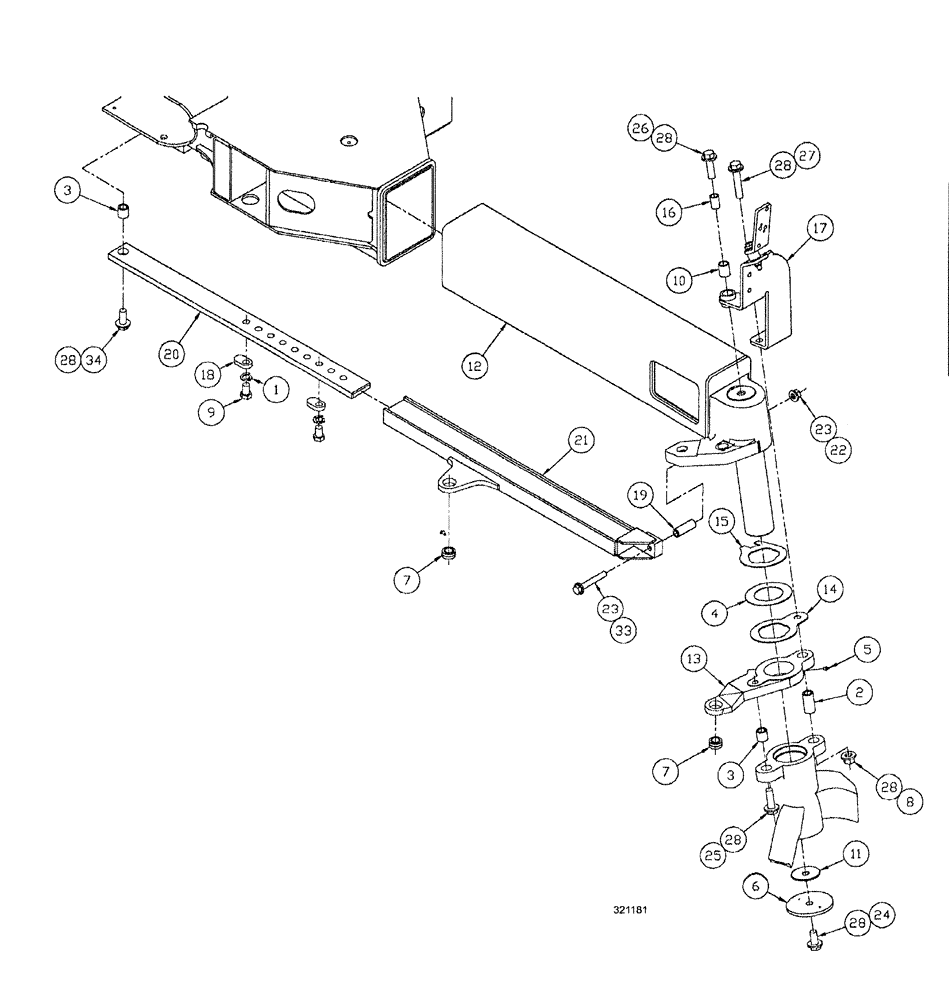

Запчасти Case IH SPX3200 (04-030) - AXLE ASSEMBLY-STEER RF (25) - FRONT AXLE SYSTEM

1

BN300528

LOCK WASHER

M20, 10.9

2шт.

2

BN301997

DOWEL

hollow

1шт.

3

BN301998

DOWEL

Hollow

2шт.

4

BN302028

WASHER, THRUST

1шт.

5

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

1шт.

6

BN302052

WASHER,20.32mm ID x 139.7mm OD

1шт.

7

87267020

SPHERICAL BEARING,0.875" ID x 1.5625" OD x 0.703"

Spherical, 1.56" OD .875"

2шт.

8

380424

NUT,M20 x 2.5, Cl 8

1шт.

9

614-20035

BOLT,Hex, M20 x 2.5 x 35mm, Cl 8.8, Full Thd

2шт.

10

BN307708

BUSHING

UHMW hose

1шт.

11

BN312604

SPACER

shim - axle

1шт.

12

BN322320

AXLE

R.H.

1шт.

13

BN312633

STEERING ARM

RH

1шт.

14

BN312983

WASHER, THRUST

1шт.

15

BN312986

WASHER, THRUST

RH

1шт.

16

BN313691

BUSHING

tube

1шт.

17

NSS

NOT SOLD SEPARAT

PIVOT, hose mount, group

1шт.

See Fig. 04-040

1шт.

18

BN320759

STOP

TAB, axle adjust stop

2шт.

19

BN322495

BUSHING

hardened

1шт.

20

BN321008

BAR

axle slide

1шт.

21

BN321062

SLIDE

axle adjust

1шт.

22

832-46416

NUT,M16 x 2, Cl 8

1шт.

23

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

2шт.

24

9512573

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

1шт.

25

9843495

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

1шт.

26

412641

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

1шт.

27

9843612

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

1шт.

28

86639847

WASHER,21.8mm ID x 44.5mm OD x 5mm Thk

6шт.

33

84036080

BOLT,Hex, M16 x 110mm, Cl 10.9

1шт.

34

627-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

1шт.
