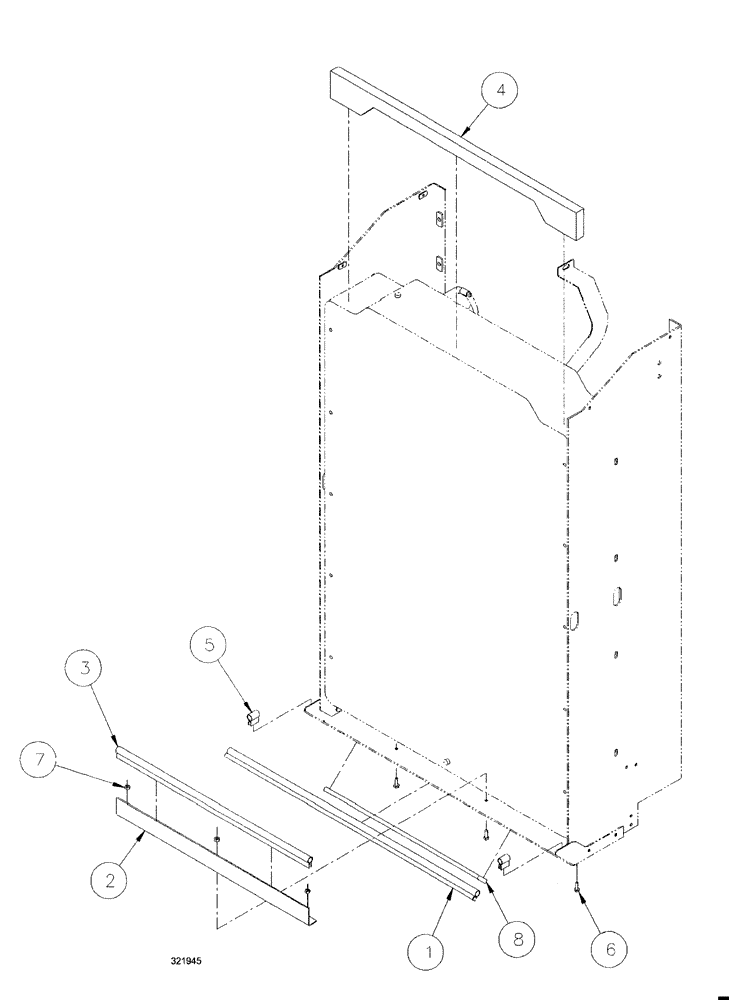

Запчасти Case IH SPX3200 (03-084) - RADIATOR BAFFLE GROUP (10) - ENGINE

1

BN316802

RUBBER SEAL,817.88mm L

GRILL, top

1шт.

2

BN316826

MOUNTING PARTS

baffling, bottom

1шт.

3

BN318431

SEAL

baffling, radiator

1шт.

4

BN321946

FOAM

radiator baffling

1шт.

5

BN321947

SEAL

radiator, sides

2шт.

6

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

7

280129

NUT,1/4"-20

3шт.

8

BN322637

FOAM

grille baffling

1шт.
