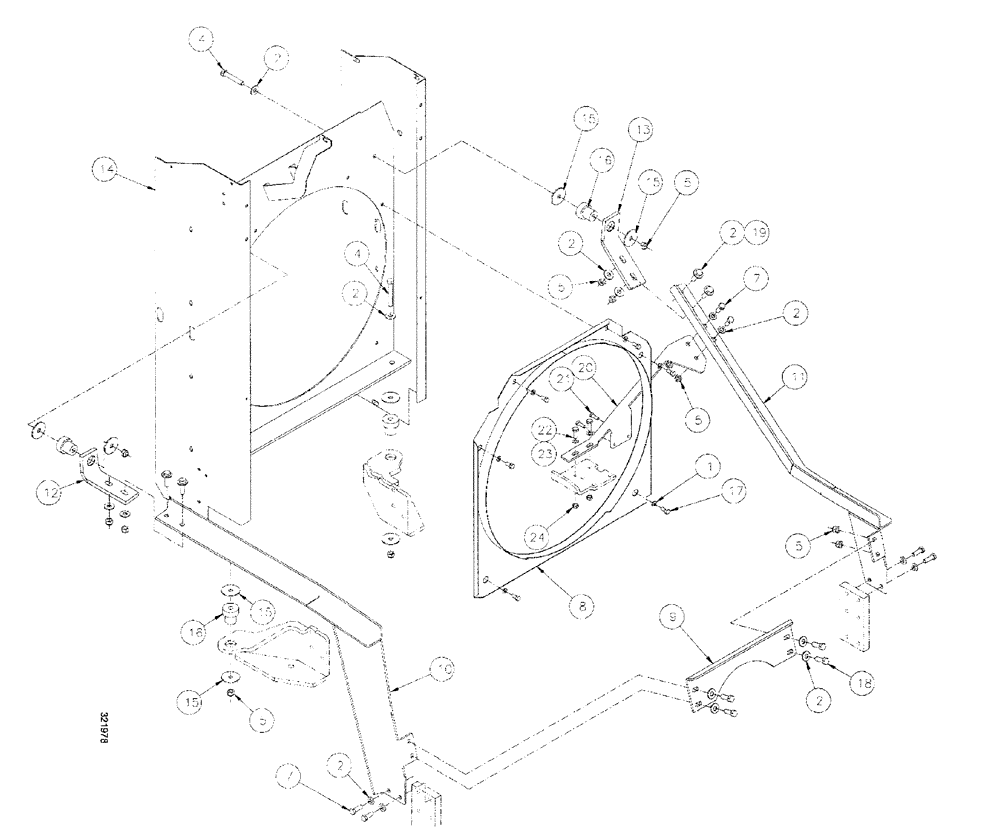

Запчасти Case IH SPX3200 (03-074) - SHROUD MOUNTING GROUP (10) - ENGINE

1

498-81003

SQ HOLE WASHER

3/8 x 1.5 x .06

6шт.

2

BN300500

WASHER,M12, 10.9

22шт.

4

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

4шт.

5

100038

NUT,M12 x 1.75, Cl 8

14шт.

7

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

6шт.

8

BN316752

SHROUD

fan

1шт.

9

BN316778

BRACE

support, radiator

1шт.

10

BN319700

BRACKET

SUPPORT, radiator, front

1шт.

21

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

11

BN318124

SUPPORT

radiator, rear

1шт.

12

BN319731

BRACKET, SUPPORTING

BRACE, radiator, front

1шт.

13

BN318070

BRACE

radiator, rear

1шт.

14

BN321977

SHROUD

RAD

1шт.

15

BN316870

WASHER

2.25 x 0.52 x 7 GA, 304 SS

8шт.

16

BN29243

ISOLATOR

Rubber 1/2" Bore

4шт.

17

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

6шт.

18

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

4шт.

19

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

4шт.

20

BN318986

BRACKET

SUPPORT, RAD. PKG.

1шт.

22

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

23

BN300499

WASHER,M10, 10.9

2шт.

24

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.
