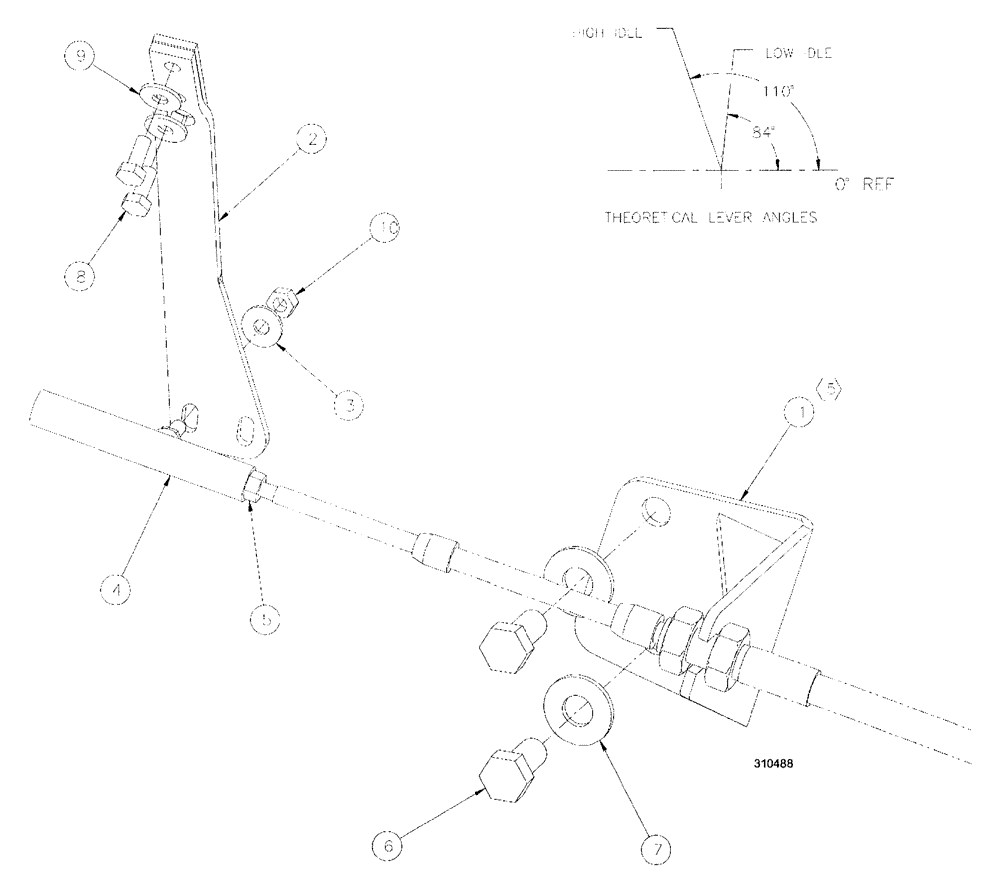

Запчасти Case IH SPX3200 (03-072) - THROTTLE CABLE ASSEMBLY (10) - ENGINE

1

BN323630

BRACKET

Throttle

1шт.

2

BN310390

LEVER

throttle cable

1шт.

3

87529236

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

0.281 X 0.625 X 0.065 HTS DOR HDN

1шт.

4

225619A1

BALL JOINT

throttle rod

1шт.

5

50055

NUT Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

6

43151

BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.

7

BN300500

WASHER,M12, 10.9

2шт.

8

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

9

BN300496

WASHER

M6, Flat, 10.9

2шт.

10

BN319397

LOCK NUT

1/4-28, NLN, G8

1шт.
