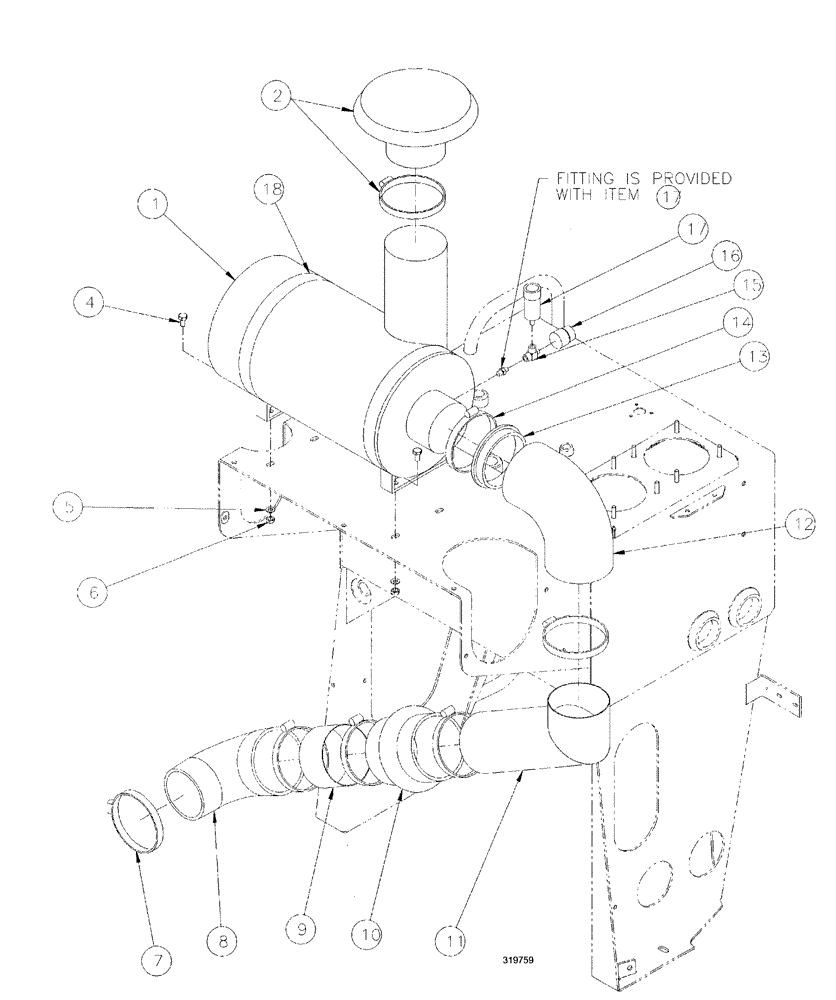

Запчасти Case IH SPX3200 (03-060) - AIR CLEANER PACKAGE (10) - ENGINE

1

247825A2

AIR CLEANER

4.5 outlet

1шт.

249987A1

FILTER, ELEMENT

ELEMENT, FILTER primary

1шт.

Indicates service parts for above Ref. number

1шт.

249988A1

FILTER, ELEMENT

ELEMENT, FILTER secondary

1шт.

Indicates service parts for above Ref. number

1шт.

8605079

COVER

assembly

1шт.

Indicates service parts for above Ref. number

1шт.

60-4452T2

FILTER

Air Inlet

1шт.

Indicates service parts for above Ref. number

1шт.

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

Evacuator

1шт.

Indicates service parts for above Ref. number

1шт.

D36264

FITTING

ADAPTER

1шт.

Indicates service parts for above Ref. number

1шт.

2

54-305

CAP

Hood, Air Inlet, With Clamp

1шт.

54-305

CAP

Hood, Air Inlet, With Clamp

1шт.

Indicates service parts for above Ref. number

1шт.

BN320355

CLAMP

hood, air inlet

1шт.

Indicates service parts for above Ref. number

1шт.

4

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

4шт.

5

BN50146

WASHER,3/8", Stainless

4шт.

6

BN50062

LOCK NUT,3/8"-16, Stainless Steel

4шт.

7

BN69643

CLAMP

T-BOLT, 4.50 long

1шт.

8

BN306335

ELBOW

90°, 5 x 4

1шт.

9

BN318699

TUBE

air cleaner

1шт.

10

BN318717

HOSE,5.00" ID

Hump

1шт.

11

BN318698

TUBE

air cleaner

1шт.

12

BN318716

ELBOW, 5 x 5 x 90 DEC, RUB

1шт.

13

BN318715

SLEEVE

REDUCER, inlet sleeve

1шт.

14

BN2390361

SPECIAL CLAMP

T-Bolt Band 5.5"

5шт.

15

BN68257

TEE

1/8NPT, male-female

1шт.

16

BN66126

INDICATOR

Filter, Electric

1шт.

17

BN68258

INDICATOR

Restrict, 25" H2O

1шт.

18

S238773

CLAMP

MOUNT, band (air cleaner)

2шт.
