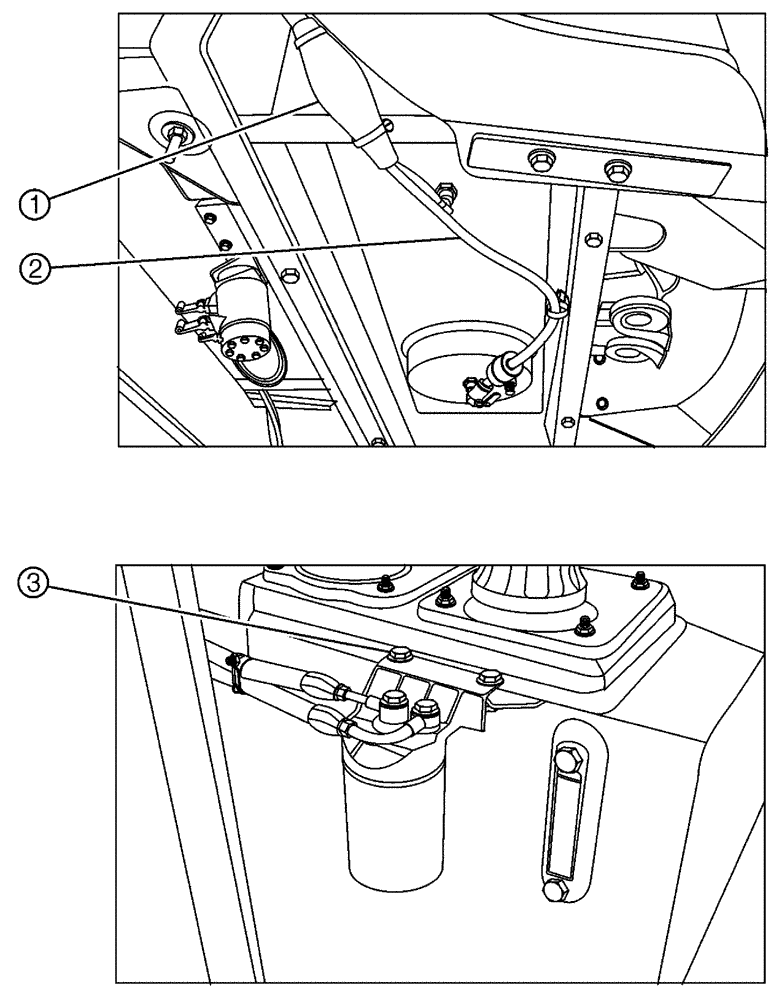

Запчасти Case IH SPX3200 (03-051) - FUEL ASSY, DELIVERY SYSTEM (10) - ENGINE

1

BN313523

SLEEVE

hose, nylon, 6"

1шт.

2

BN318839

FUEL HOSE,9.53 mm ID x 3937.00 mm, SAE 30R6, SAE 30R7

fuel 3/8" x 155"

2шт.

3

BN320236

HDWE, FUEL FILTER MTG

1шт.

See Fig. 03-053

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

3шт.

Parts of Pkg., Hdwe, Fuel Filter Mtg, P/N BN320236

1шт.

BN50142

WASHER,5/16", Stainless Steel

3шт.

Parts of Pkg., Hdwe, Fuel Filter Mtg, P/N BN320236

1шт.

257492

CLAMP,14.3mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

Parts of Pkg., Hdwe, Fuel Filter Mtg, P/N BN320236

1шт.

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

2шт.

Parts of Pkg., Hdwe, Fuel Filter Mtg, P/N BN320236

1шт.

87487826

CLAMP,0.44" - 0.78"

HOSE, 60.78/0.44 M SST 300

1шт.

BN76094

HOSE CLAMP

SS #M4

3шт.

J935740

BANJO BOLT

CONNECTOR

1шт.
