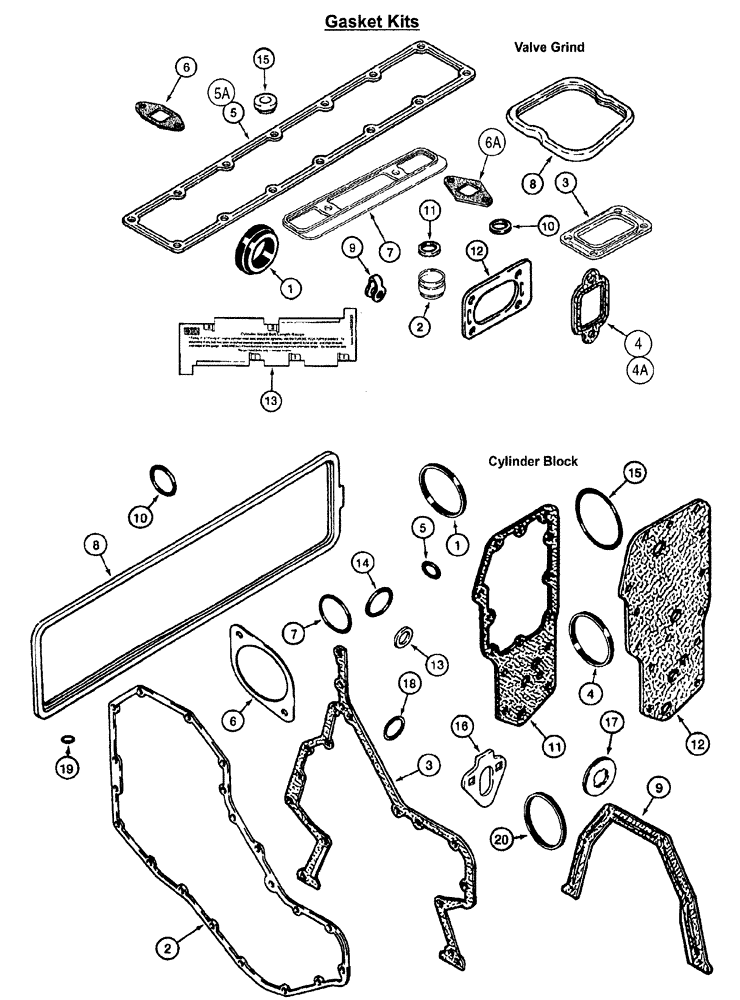

Запчасти Case IH SPX3200 (03-046) - GASKET KITS (10) - ENGINE

87434407

GASKET

Gasket, Valve Grind

1шт.

Consists of Refs. 1 - 15, valve grind

1шт.

1

J923331

GASKET

HOUSING

1шт.

See Fig. 02-041, valve grind

1шт.

2

J921640

SEAL

valve stem

12шт.

See Fig. 02-043, valve grind

1шт.

3

J919369

GASKET,0.5mm Thk

MOUNTING

1шт.

See Fig. 02-029, valve grind

1шт.

4

J905443

MANIFOLD GASKET

MANIFOLD

6шт.

See Fig. 02-029, used with A77871, valve grind

1шт.

4a

J927154

GASKET,0.38mm Thk

MANIFOLD

6шт.

See Fig. 02-029, used with A77925, valve grind

1шт.

5

J931347

GASKET

MOUNTING

1шт.

See Fig. 02-029, used with A77871, valve grind

1шт.

5a

J938152

MANIFOLD GASKET

MOUNTING

1шт.

See Fig. 02-029, used with A77925, valve grind

1шт.

6

J931350

GASKET

MOUNTING

1шт.

See Fig. 02-029, used with A77871, valve grind

1шт.

6a

J285747

GASKET

MOUNTING

1шт.

See Fig. 02-029, used with A77925, valve grind

1шт.

7

J930426

GASKET

MOUNTING, valve grind

1шт.

8

J930906

GASKET

SEAL

6шт.

See Fig. 02-041, valve grind

1шт.

9

J903380

SEAL

Banjo connector

6шт.

See Fig. 03-011, valve grind

1шт.

10

J906659

SEAL

7mm

6шт.

See Figs. 03-011 and 03-021, valve grind

1шт.

11

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

0-RING

6шт.

See Fig. 03-021, valve grind

1шт.

12

J914856

GASKET,1.02mm Thk

MOUNTING, valve grind

1шт.

13

J823921

GAUGE

valve grind

1шт.

15

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

6шт.

See Fig. 02-041, valve grind

1шт.

A77964

SEAL PACKAGE

KIT Gasket, Cylinder Block

1шт.

Consists of Refs. 1 - 20, cylinder block

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

See Fig. 02-027, cylinder block

1шт.

2

J918673

GASKET,1.02mm Thk

SEAL

1шт.

See Fig. 02-027, cylinder block

1шт.

3

J931351

GASKET

HOUSING

1шт.

See Fig. 02-027, cylinder block

1шт.

4

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING

1шт.

See Fig. 02-027, cylinder block

1шт.

5

J913994

O-RING

1шт.

See Fig. 02-027, cylinder block

1шт.

6

J929751

GASKET

PLATE

1шт.

See Fig. 02-027, cylinder block

1шт.

7

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

8

J284623

GASKET

SEAL

1шт.

See Figs. 02-055 and 02-063, cylinder block

1шт.

9

J938159

GASKET

MOUNTING

1шт.

See Fig. 02-069, cylinder block

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING, 50mm, ID

1шт.

See Figs. 02-055 and 02-063, cylinder block

1шт.

11

J942914

GASKET

MOUNTING

1шт.

See Fig. 02-033, cylinder block

1шт.

12

J929792

GASKET,1.2mm Thk

MOUNTING

1шт.

See Fig. 02-033, cylinder block

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

See Figs. 02-035 and 02-037, cylinder block

1шт.

14

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING, 38mm, ID, cylinder block

1шт.

15

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING

1шт.

See Fig. 02-075, cylinder block

1шт.

16

J931059

GASKET

MOUNTING

1шт.

See Fig. 03-013, cylinder block

1шт.

17

J928759

SEALING WASHER

8шт.

See Figs. 02-053 and 02-063, cylinder block

1шт.

18

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

19

J929457

O-RING

23/32 ID x 7/64

1шт.

See Fig. 03-033, cylinder block

1шт.

20

J935032

SEAL

O-RING, cylinder block

1шт.

ns

KIT, basic engine gasket, cylinder block

1шт.

See Fig. 03-048

1шт.
