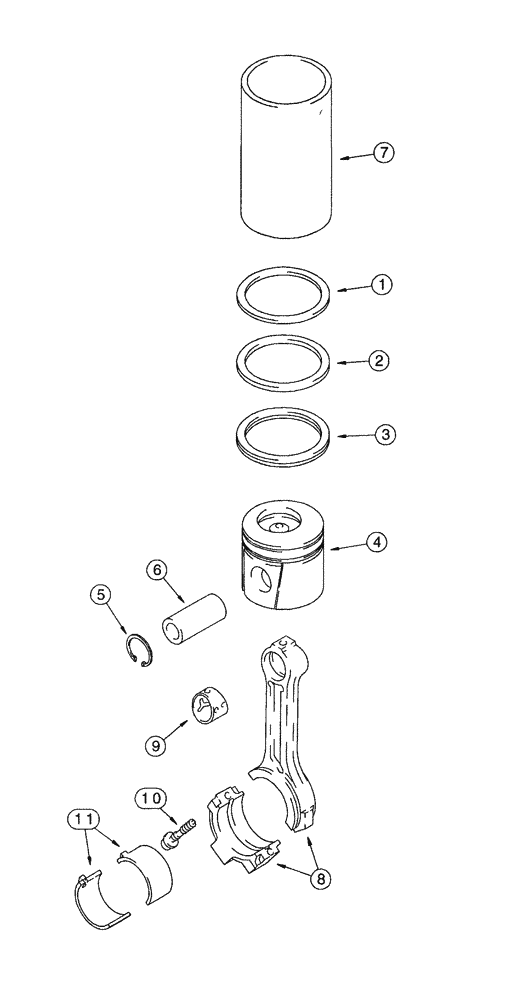

Запчасти Case IH SPX3200 (03-044) - PISTONS AND CONNECTING RODS (10) - ENGINE

J802750

PISTON RING SET

1шт.

Consists of Refs. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON, standard

1шт.

5

J920691

SPECIAL RING

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

1шт.

J802758

KIT

PISTON, oversize : 0.5mm

6шт.

Consists of J802422, Refs. 1 - 5

1шт.

J802863

PISTON RING SET

consists of : 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING

1шт.

2

NSS

NOT SOLD SEPARAT

RING, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON, (oversize : 0.5mm)

1шт.

5

J9020691

RING

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

1шт.

J802759

KIT

piston, (oversize : 1.0mm)

6шт.

Consists of J802423, Refs. 1 - 5

1шт.

J802864

PISTON RING SET

(1.0mm)

1шт.

Consists of Refs. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON, (oversize : 1.0mm)

1шт.

5

J920691

SPECIAL RING

RING

2шт.

6

J939047

PIN

1шт.

7

J904166

SLEEVE

REPAIR, cylinder

6шт.

J942581

ROD, CONNECTING

ROD, connecting

6шт.

JR942581

REMAN-CONNECTING ROD

Assy

6шт.

JC901569

CORE-ROD CONNECTING

Core-Connecting Rod, Return Number

6шт.

J942581

ROD, CONNECTING

ASSY.

6шт.

Consists of Refs. 8 - 10

1шт.

84145405R

REMAN-CONNECTING ROD

SPX3200 (11/01-10/02), Reman For New PN J942581

6шт.

84145405C

CORE-ROD CONNECTING

Return Number

6шт.

8

NSS

NOT SOLD SEPARAT

ROD

1шт.

9

J941476

BUSHING

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT, M11 x 59

2шт.

11

87425525

CRANKSHAFT BEARING

Kit - Upper and Lower Set, Standard, See Service Bulletin

6шт.

11

A77465

BEARING SET

Kit - Upper and Lower Set, Standard, See Service Bulletin

6шт.

11

A77466

BEARING SET

KIT - Upper and Lower Set, 0.25 mm Undersize, See Service Bulletin

6шт.

11

A77467

BEARING LINER

KIT - Upper and Lower Set, 0.5 mm Undersize, See Service Bulletin

6шт.

11

A77468

BEARING SET

KIT - Upper and Lower Set, 0.75 mm Undersize, See Service Bulletin

6шт.

11

A77469

BEARING SET

KIT - Upper and Lower Set, 1.0 mm Undersize, See Service Bulletin

6шт.
