(11-006) - FENDER GROUP, RH (LONG)

Запчасти Case IH SPX3200 (11-006) - FENDER GROUP, RH (LONG) (90) - PLATFORM, CAB, BODYWORK AND DECALS

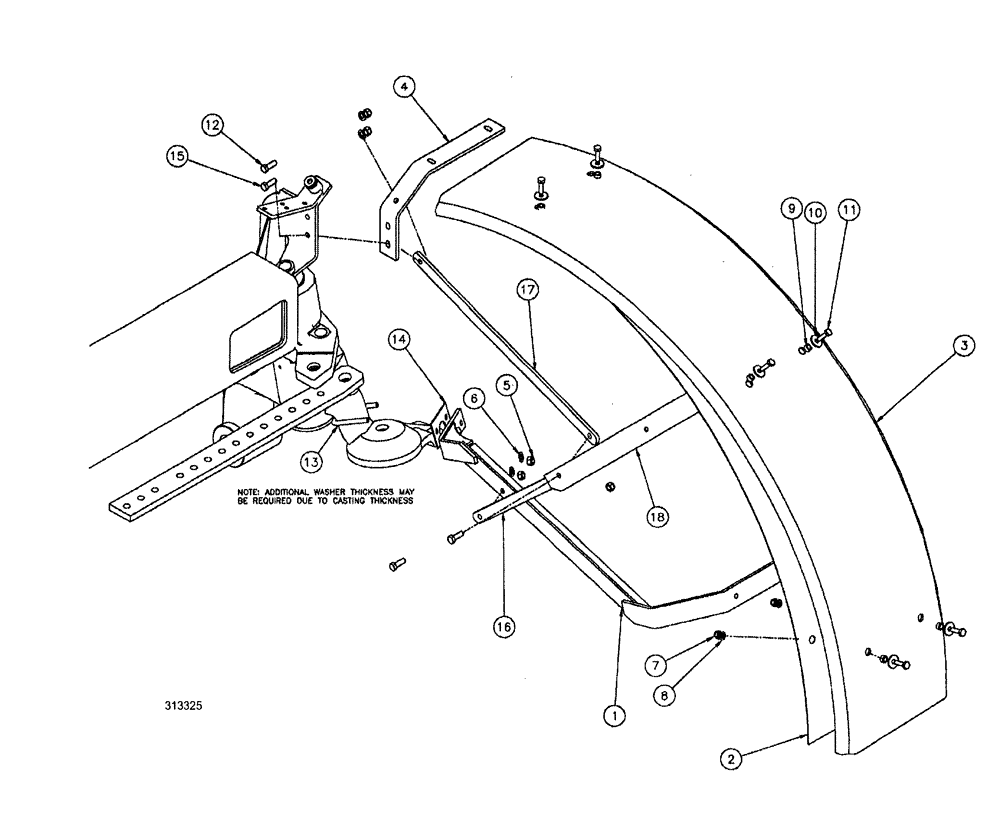

Схема запчастей Case IH SPX3200 - (11-006) - FENDER GROUP, RH (LONG) (90) - PLATFORM, CAB, BODYWORK AND DECALS
15
5
7
16
12
10
2
8
4
6
17
9
18
13
14
3
11
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN310789

MOUNTING PARTS

rear, fender (RH)

1шт.

2

BN313445

PLATE

inner fender brace

1шт.

3

BN310797

FENDER

1шт.

4

BN311623

BRACKET

fender support

1шт.

5

BN313561

LOCK NUT

M12-1.75, NLN, SS

6шт.

6

BN300508

WASHER

4шт.

7

100037

LOCK NUT,M10 x 1.5, Cl 8

6шт.

8

BN300507

WASHER

M10, Flat, SS

6шт.

9

BN313446

SPACER

fender bolt

6шт.

10

87529239

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

0.406 x 1.125 x 0.134 HTS DOR HDN

6шт.

11

BN300472

BOLT

M10-1.5 x 35, HH, SS

6шт.

12

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

1шт.

13

342095A1

U-BOLT

BOLT "U" M12 x 3.57 x 2.56

1шт.

14

BN326000

RETAINER

fender spacer

1шт.

15

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

3шт.

16

342098A1

SUPPORT

BRACE, fender S

1шт.

17

342099A1

SUPPORT

BRACE, fender L

1шт.

18

342335A1

SUPPORT

BRACE, fender, RH

1шт.
