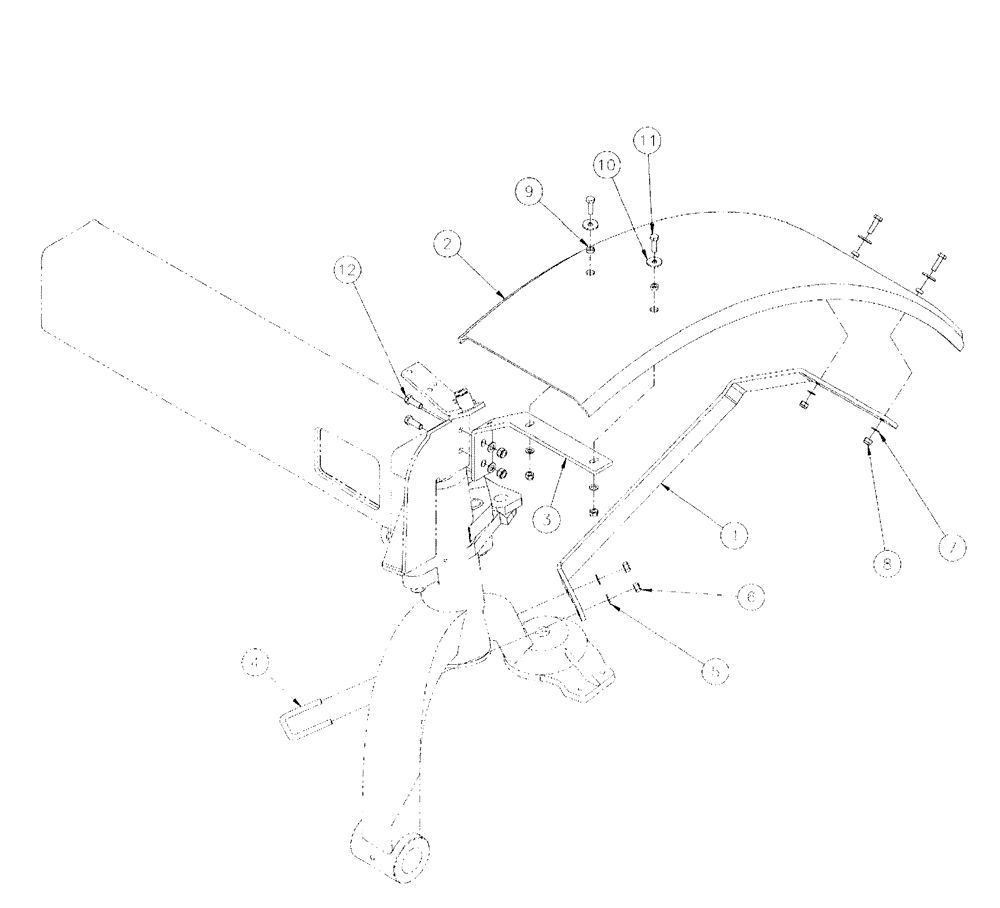

Запчасти Case IH SPX3200 (11-004) - FENDER GROUP - LH (SHORT) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

BN318652

BRACKET, SUPPORTING

MOUNT, fender, L.H.

1шт.

2

BN318829

FENDER

1шт.

3

BN311623

BRACKET

fender support

1шт.

4

342095A1

U-BOLT

BOLT "U" M12 x 3.57 x 2.56

1шт.

5

BN300508

WASHER

4шт.

6

BN313561

LOCK NUT

M12-1.75, NLN, SS

4шт.

7

BN300507

WASHER

M10, Flat, SS

4шт.

8

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

9

BN319403

SPACER

fender

4шт.

10

87529239

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

0.406 x 1.125 x 0.134 HTS DOR HDN

4шт.

11

BN300472

BOLT

M10-1.5 x 35, HH, SS

4шт.

12

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.
