(10-004) - EXTERIOR DECALS-GRAPHICS

Запчасти Case IH SPX3200 (10-004) - EXTERIOR DECALS-GRAPHICS (90) - PLATFORM, CAB, BODYWORK AND DECALS

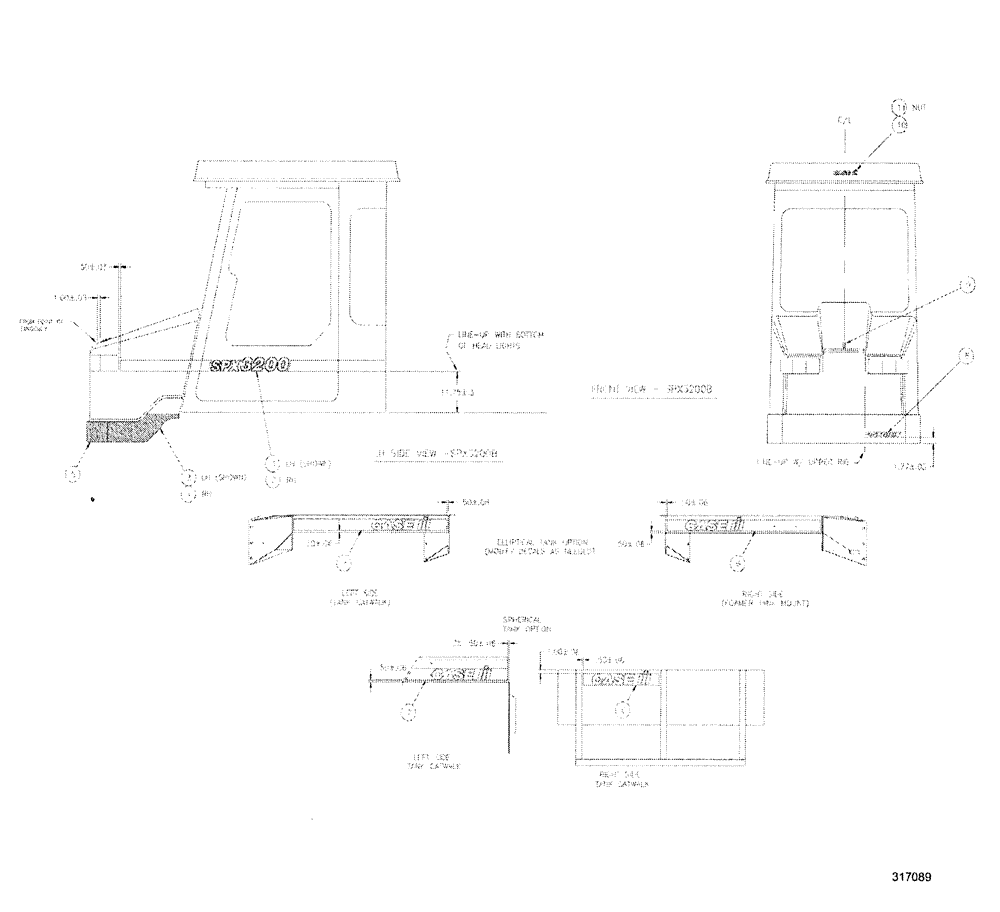

Схема запчастей Case IH SPX3200 - (10-004) - EXTERIOR DECALS-GRAPHICS (90) - PLATFORM, CAB, BODYWORK AND DECALS
9
11
4
5
3
2
6
7
8
7
1
10
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN325185

DECAL

SPX3200, L.H. side

1шт.

2

BN325186

DECAL

SPX3200, R.H. side

1шт.

3

336622A1

DECAL

LH, front hood

1шт.

4

336623A1

DECAL

RH, front hood

1шт.

5

336625A1

DECAL

mid stripe, front hood

1шт.

6

336615A1

DECAL

RH rear stripe

1шт.

7

336613A1

DECAL

LH rear stripe

1шт.

8

337687A1

DECAL

emblem, "Patriot"

1шт.

9

1968108C2

TRIM

Trim, Hood Sight

1шт.

10

186882A1

EMBLEM CASE/IH

cast nameplate

1шт.

11

86625060

PUSH-ON NUT,Self, Threading, 1/4"

2шт.
