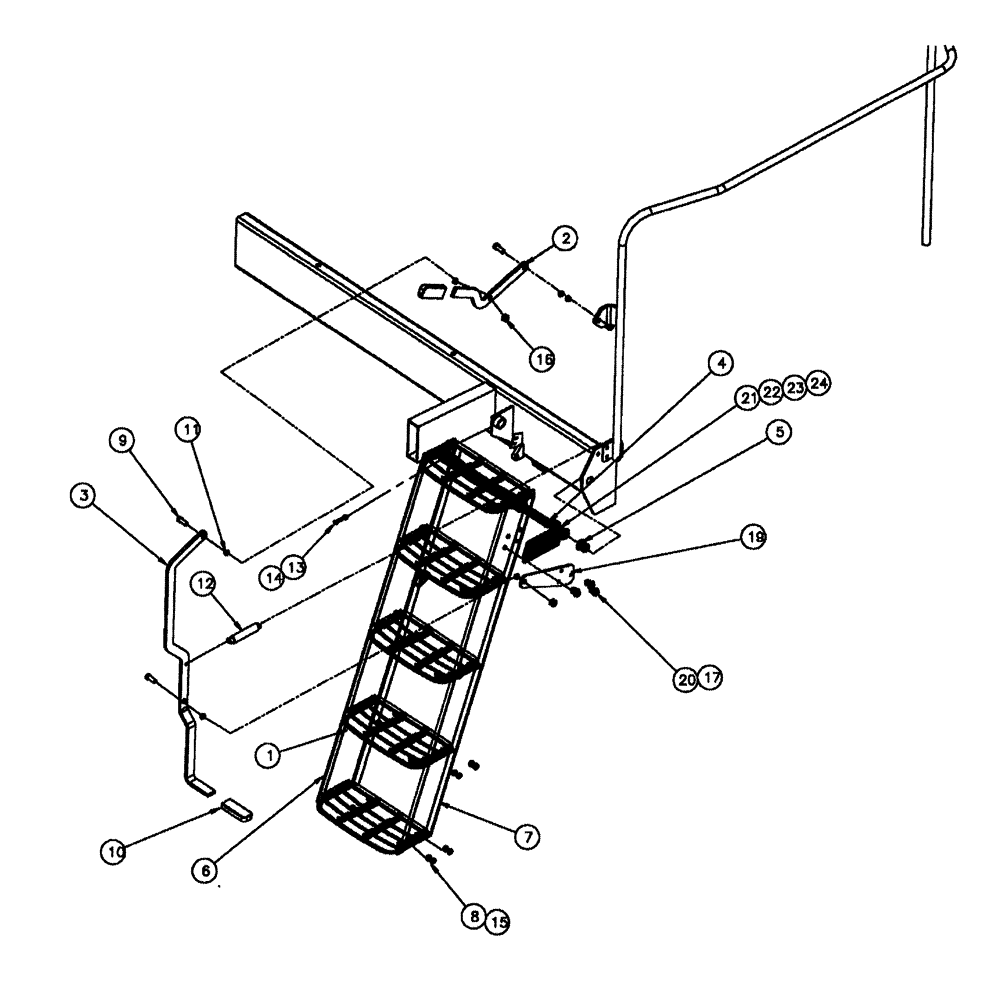

Запчасти Case IH SPX3200 (04-022) - LADDER, ACCESS LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

257375A1

STEP

cast alum tractor lower

5шт.

2

BN307019

HANDLE

1шт.

3

BN307637

HANDLE

LINK , ladder lift

1шт.

4

BN320322

PIN,25.4mm OD x 444mm L

ladder pivot

1шт.

5

BN321159

BUSHING,25.44mm ID x 27.77mm OD x 26.54mm L

4шт.

6

342269A1

BRACKET, SUPPORTING

mount, ladder steps

1шт.

7

342268A1

BRACKET, SUPPORTING

mount, ladder steps

1шт.

8

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

20шт.

9

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

3шт.

10

BN67835

GRIP

HANDLE, RWK, 10269

2шт.

11

BN68133

BUSHING

6шт.

12

BN71134

SPRING

Tension

1шт.

13

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

14

86528579

NUT,M8 x 1.25

1шт.

15

100037

LOCK NUT,M10 x 1.5, Cl 8

24шт.

16

100038

NUT,M12 x 1.75, Cl 8

3шт.

17

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

4шт.

19

BN324899

MOUNTING PLATE

ladder lift lock

1шт.

20

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

4шт.

21

BN323392

STOP

ladder

1шт.

22

BN320307

PAD

ladder

1шт.

23

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

1шт.

24

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

1шт.
