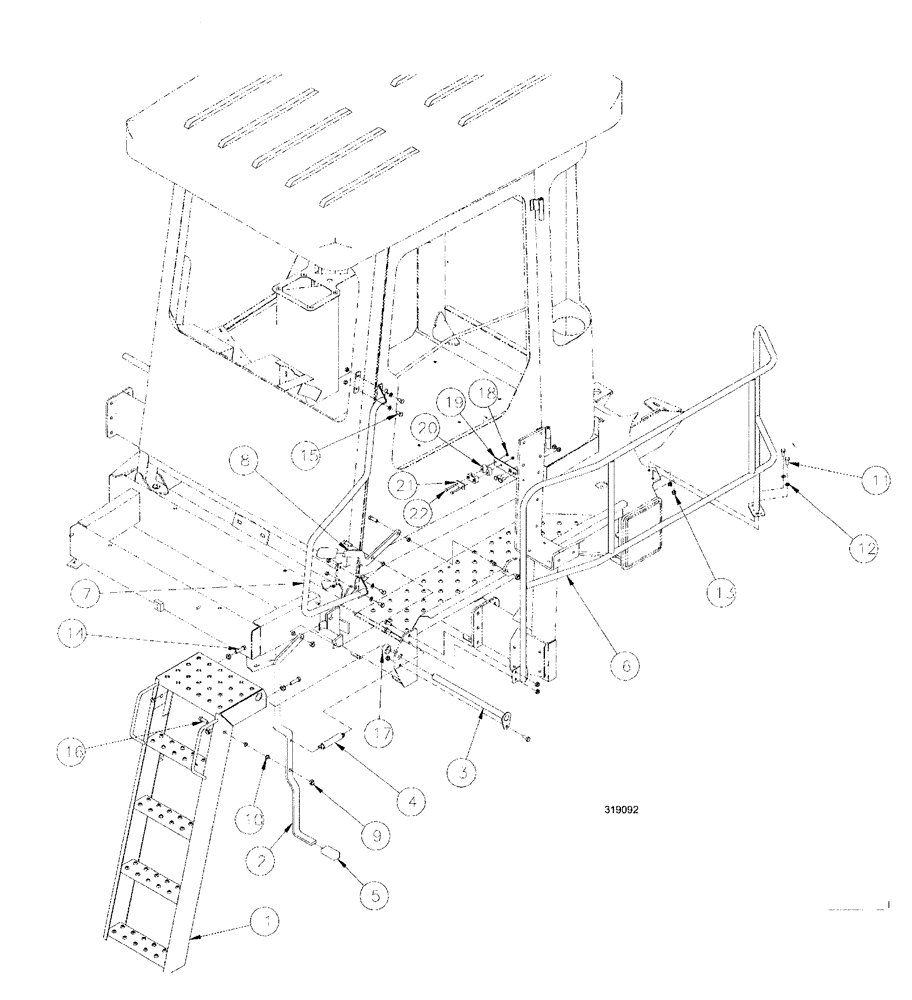

Запчасти Case IH SPX3200 (04-020) - RH-RAIL ASSEMBLY; RAIL, HAND GROUP (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

BN311242

LADDER

Shaft, 1", CFRD, 1018 x 17.25

1шт.

2

BN307637

HANDLE

LINK, ladder lift

1шт.

3

BN306626

PIN

1шт.

4

BN71134

SPRING

Tension

1шт.

5

BN10269

HANDLE GRIP

rubber

2шт.

6

BN319091

HANDRAIL

1шт.

7

BN67722

HANDLE

grab, front ladder

1шт.

8

BN307019

HANDLE

1шт.

9

100038

NUT,M12 x 1.75, Cl 8

7шт.

10

BN68133

BUSHING

6шт.

11

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

1шт.

11

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

7шт.

12

BN300499

WASHER,M10, 10.9

6шт.

13

100037

LOCK NUT,M10 x 1.5, Cl 8

11шт.

14

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

2шт.

15

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

16

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

3шт.

17

BN306627

SPACER

1шт.

18

280129

NUT,1/4"-20

2шт.

19

BN319404

SUPPORT

BRACKET, support

1шт.

20

BN307080

CLAMP

pair -1" tube

1шт.

21

BN307081

PLATE

top, clamp -1" tube

1шт.

22

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.
