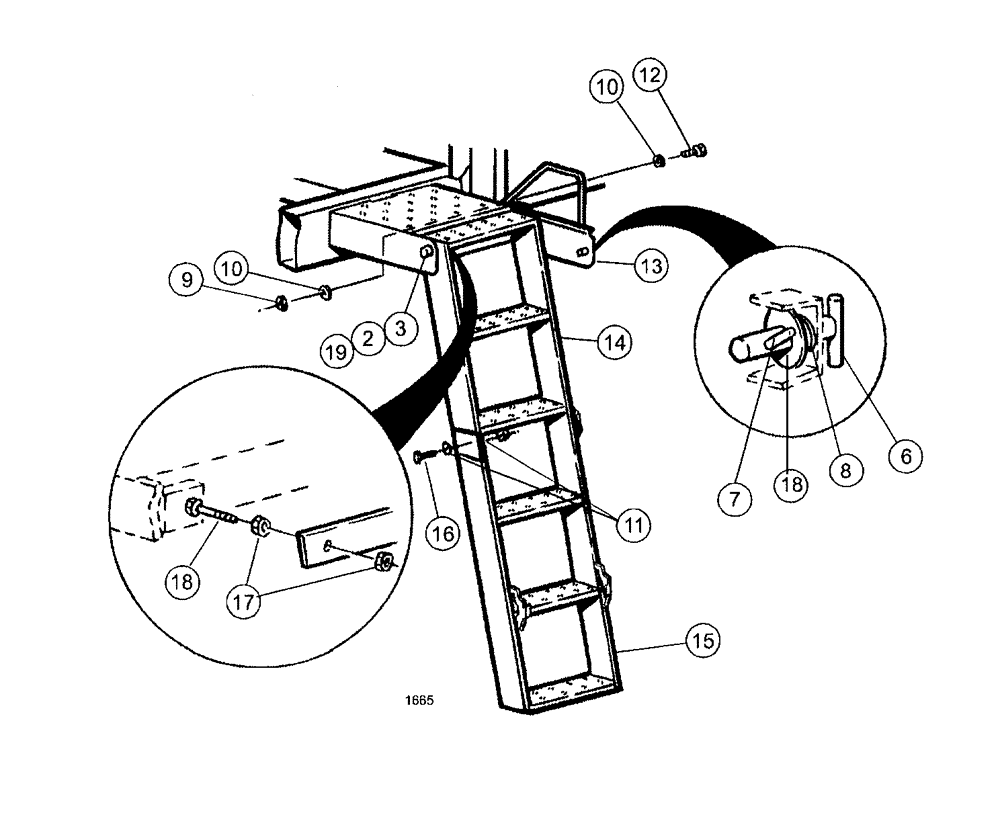

Запчасти Case IH SPX3200 (04-018) - LADDER-RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

2

BN25138

SHAFT

1" x 17.25"

1шт.

3

BN50605

PIN, ROLL

7/32 x 1 1/2

1шт.

5

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

2шт.

Not Shown

1шт.

6

BN25257

PIN

Side Ladder

1шт.

Latch

1шт.

7

BN31444

PIN, ROLL

1/4 x 1 1/2

1шт.

Roll pin #7 must be in second hole to engage ladder stop.

1шт.

Latch

1шт.

8

BN31937

SPRING

Compression, .905 x .765 2

1шт.

Latch

1шт.

9

88902

NUT,3/8"-16

4шт.

Latch

1шт.

10

BN50145

WASHER

3/8, FW, G5

4шт.

Latch

1шт.

11

BN50166

WASHER

WHM, 7/8OD x 1/2ID x 14GA

6шт.

12

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

13

BN63581

LATCH

Ladder

1шт.

14

BN63582

LADDER

Bi-Fold Top

1шт.

15

BN312542

LADDER

bi-fold, (3 step)

1шт.

16

BN50894

BOLT

1/2"-13 x 2.5, HH, 5, PL

2шт.

17

86992215

LOCK NUT,1/2"-13, GC

6шт.

18

BN50157

WASHER

3/4, G5

1шт.

Latch

1шт.

19

BN50168

WASHER,25.4mm ID x 38.1mm OD x 3.57mm Thk

WHM,1" ID x 1.5OD x 10GA

1шт.

BN24964

SERVICE KIT

LATCH

1шт.
