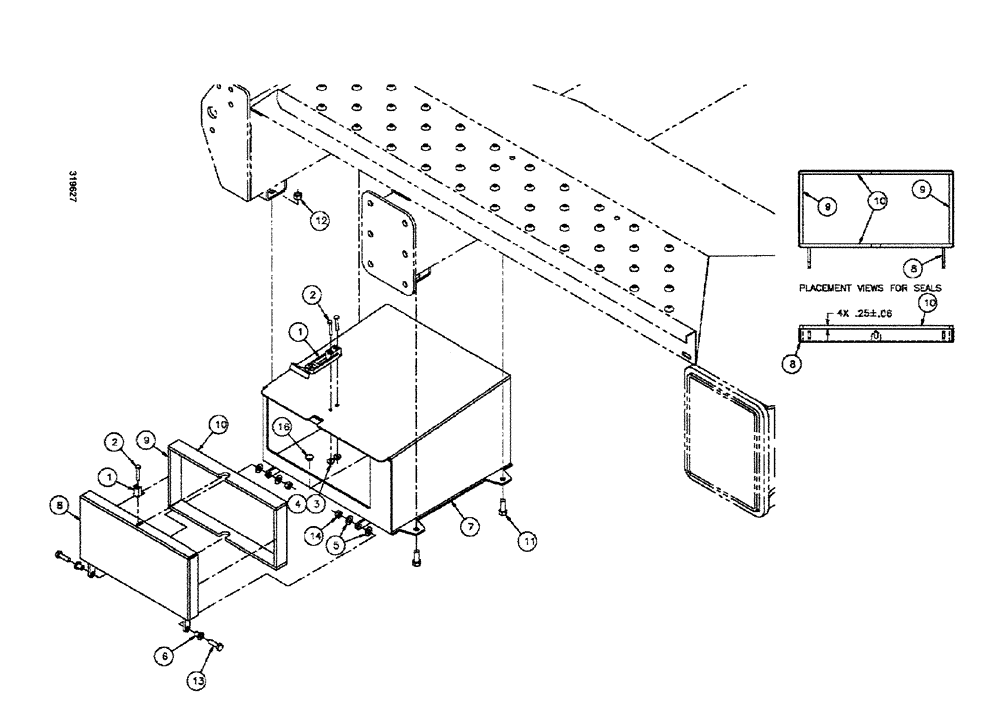

Запчасти Case IH SPX3200 (04-014) - TOOLBOX GROUP, FRONT LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

BN309337

LATCH

flexible draw

1шт.

2

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10-24 x 1.25, BSH, SS

3шт.

3

BN310265

WASHER

10, Stainless Steel

3шт.

4

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

3шт.

5

BN319150

WASHER

3/8, FW, nylon

4шт.

6

BN319151

BUSHING

5/16, SHLDER.NYLN

2шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

4шт.

Toolbox package

1шт.

7

BN319162

TOOL BOX

L.H., front

1шт.

8

BN319164

COVER ASSY

L.H., toolbox

1шт.

9

BN319629

SEAL

toolbox cover, foam

2шт.

10

BN319630

SEAL

toolbox cover, foam

2шт.

11

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

12

88902

NUT,3/8"-16

4шт.

13

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

14

280736

NUT,5/16"-18, GC

2шт.

16

BN319668

PLUG

7/16", Nylon

1шт.

BN67937

PACKAGE, toolbox

1шт.

342379A1

RISER

2шт.

Toolbox package

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

Toolbox package

1шт.

BN68536

BRACKET, SUPPORTING

MOUNT

1шт.

Toolbox package

1шт.

280129

NUT,1/4"-20

6шт.

Toolbox package

1шт.

87529236

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

0.281 X 0.625 X 0.065 HTS DOR HDN

12шт.

Toolbox package

1шт.

87268338

TOOL BOX

Portable Assembly

1шт.

Toolbox package

1шт.
