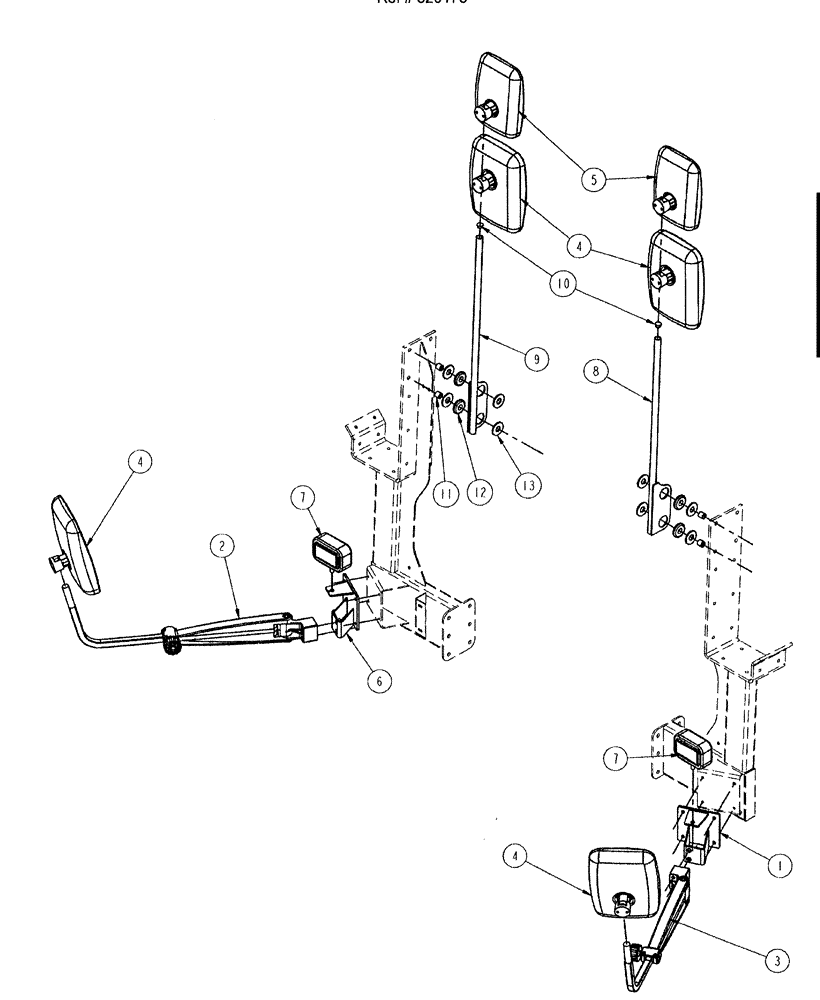

Запчасти Case IH SPX3200 (04-006) - MIRROR GROUP (90) - PLATFORM, CAB, BODYWORK AND DECALS

88902

NUT,3/8"-16

8шт.

BN300500

WASHER,M12, 10.9

12шт.

BN302750

BOLT

M12-1.75 x 75, HH, 10.9

4шт.

BN50254

BOLT,3/8"-16 x 1", Stainless

8шт.

9706693

BOLT,M12 x 60mm, Cl 8.8

4шт.

100038

NUT,M12 x 1.75, Cl 8

4шт.

1

BN320145

MOUNTING PLATE

mirror, lower, L.H.

1шт.

2

87594289

ARM

Mirror, Lower RH

1шт.

3

87594290

ARM

Mirror, Lower LH

1шт.

4

365414A1

MIRROR

head, manual, 1800 mm

4шт.

5

87268397

MIRROR

Head, R450 mm

2шт.

6

BN320144

MOUNTING PLATE

mirror, lower, R.H.

1шт.

7

BN66130

FLASHER LAMP

Signal, Amber 12V

2шт.

8

BN320142

BRACKET, SUPPORTING

MOUNT, mirror, upper, L.H.

1шт.

9

BN320141

BRACKET, SUPPORTING

MOUNT, mirror, upper, R.H.

1шт.

10

BN304439

PLUG

dash, 11/16

2шт.

11

BN320164

BUSHING

mirror bracket

4шт.

12

BN320147

GROMMET

2 x 3/4 x 7/16

4шт.

13

BN320165

WASHER

WASHER, mirror bracket

8шт.
