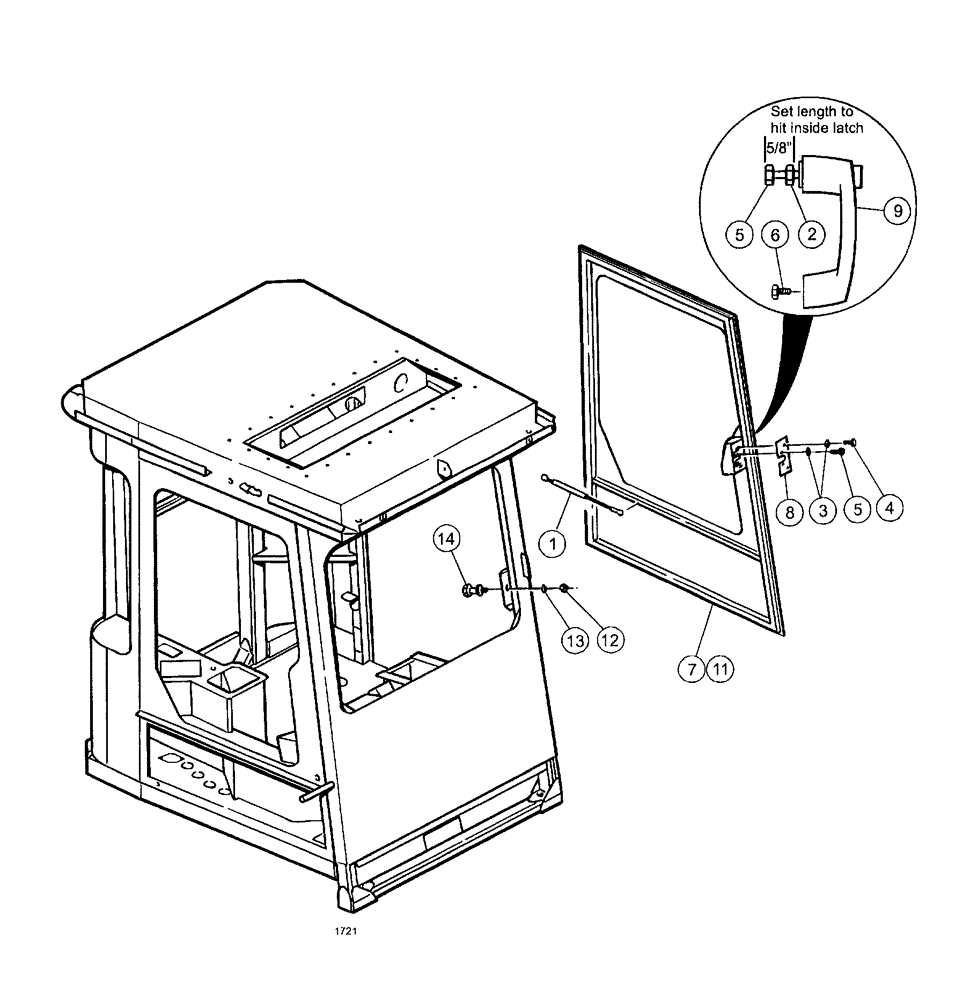

Запчасти Case IH SPX3200 (02-006) - DOOR AND STRIKER ASSEMBLIES (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

BN29434

GAS STRUT

Cylinder Kit - Charged - Door (Complete)

1шт.

BN29400A

CYLINDER

Gas Charged

1шт.

Indicates service parts for above Ref. number

1шт.

BN29553A

BALL JOINT

Stud, 13 mm Dia 5/16"-18

2шт.

Indicates service parts for above Ref. number

1шт.

BN24120

CLIP, SPRING

Gas Cylinder

2шт.

Indicates service parts for above Ref. number

1шт.

2

280129

NUT,1/4"-20

1шт.

3

BN50138

WASHER,1/4", SS

4шт.

4

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

5

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

6

120100

BOLT,M6 x 20mm, Cl 8.8

3шт.

7

BN66026

DOOR

1шт.

8

BN66103

LATCH

door, two rotor

1шт.

BN67951

CAP

Vinyl, .060 x .437 x 1.5

1шт.

Indicates associated part for BN66103

1шт.

9

BN66106

HANDLE

(DOOR) outside

1шт.

BN303475

DOOR LOCK KEY

set of 2

1шт.

Indicates associated part for BN66106

1шт.

11

BN67957

DOOR SEAL

clip on, 190"

1шт.

12

280980

NUT,7/16"-14, GC

1шт.

13

BN50595

WASHER,1/2", Stainless

2шт.

14

BN66109

CATCH

STRIKER, door

1шт.
