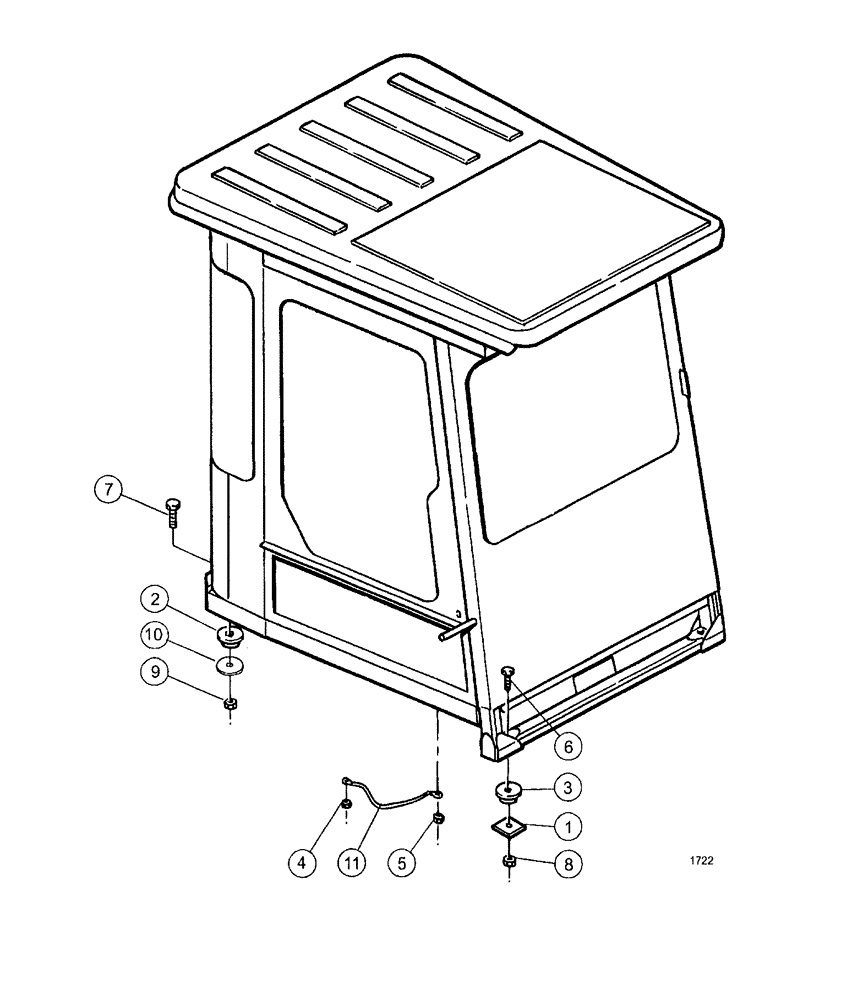

Запчасти Case IH SPX3200 (02-004) - CAB MOUNTING HARDWARE PACKAGE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

BN316870

WASHER

2.25 x 0.52 x 7 GA, 304 SS

2шт.

2

BN319699

CUSHION

mount, center bonded

2шт.

3

BN29243

ISOLATOR

Rubber 1/2" Bore

2шт.

4

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

5

88902

NUT,3/8"-16

2шт.

6

426-880

BOLT,Hex, 1/2" - 13 x 5", Gr 8

2шт.

7

86508733

BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 8

2шт.

8

86992215

LOCK NUT,1/2"-13, GC

2шт.

9

280375

NUT,3/4"-10, GC

2шт.

10

BN63818

WASHER,20.57mm ID x 69.85mm OD x 4.76mm Thk

7 GA 304 .81 x 2.75

4шт.

11

BN69830

GROUND CABLE

Chassis

2шт.

ns

BN53812

STRAP

21.5" Plastic Tie-B

3шт.

ns

BN570007

STRAP

Black, 14-1/2" Long

100шт.
