Заказать запчасти

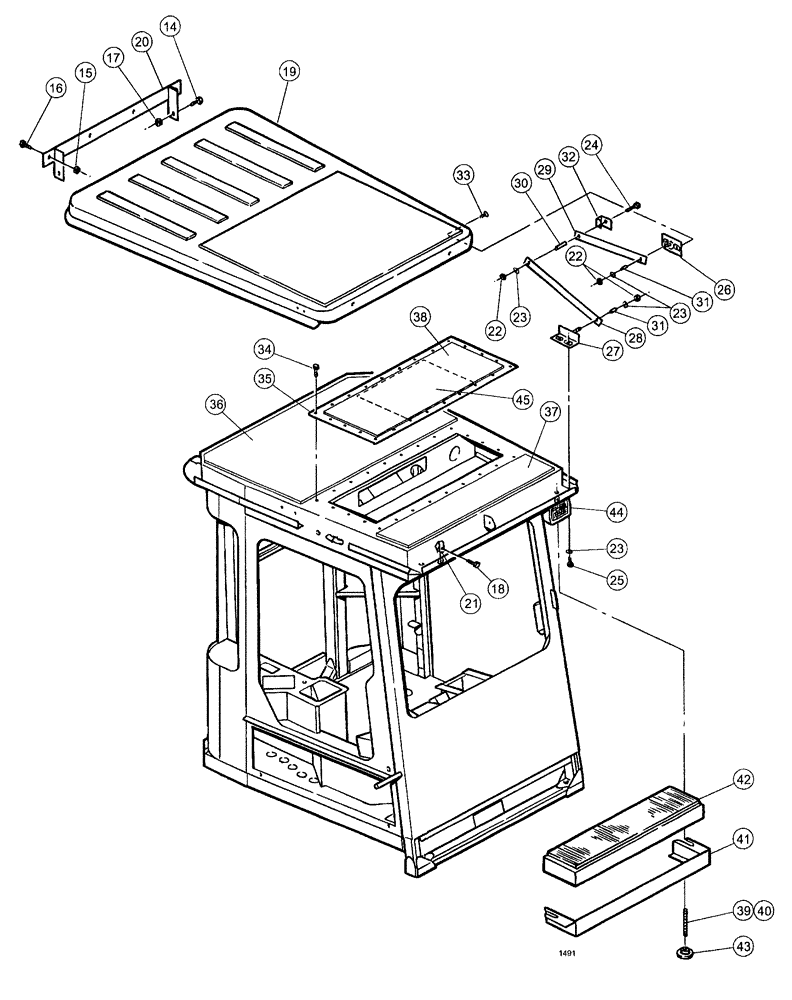

Запчасти Case IH SPX3200 (02-002) - ROOF (90) - PLATFORM, CAB, BODYWORK AND DECALS
№
Артикул
Название
Примечание
Количество
14
BN50254
BOLT,3/8"-16 x 1", Stainless
2шт.
15
BN50057
LOCK NUT,Lock, 5/16"-18, Stainless Steel
4шт.
16
BN50222
BOLT
5/16-18 x .75, TH, SS, PH
4шт.
17
BN50759
LOCK NUT,3/8"-16, Nylon, Stainless
2шт.
18
343299A1
SET SCREW,3/8"-16 X 1.00", Stainless Steel
2шт.
19
BN311759
ROOF
Cab (Red)
1шт.
20
BN67226
HINGE
half
1шт.
21
BN69828
NUT
U, 3/8-16
2шт.
23
87529236
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
0.281 X 0.625 X 0.065 HTS DOR HDN
8шт.
25
BN50205
BOLT
1/4"-20 x .625 TH, SS, Philips
2шт.
26
BN68325
PLATE
upper
1шт.
27
BN68326
PLATE
lower
1шт.
28
BN68327
SUPPORT
brace, lower
1шт.
29
BN68328
SUPPORT
brace, upper
1шт.
30
BN68329
BUSHING
1шт.
31
BN68330
BUSHING
2шт.
32
BN68331
STOP LOCK
LOCK, stop
1шт.
33
BN314570
BOLT
1/4-20 x 3/8, TH, SS, PHIL
2шт.
280129
NUT,1/4"-20
3шт.
BN50671
BOLT,1/4"-20 x 1.00", Stainless Steel
1шт.
34
88814
BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd
28шт.
35
BN304231
PANEL
roof access
1шт.
BN300175
WASHER
3/8", G8
28шт.
Indicates associated part
1шт.
BN304228
RUBBER SEAL
RUBBER SEAL 1/4 x 3/4 x 43.5
1шт.
Indicates associated part
1шт.
BN304229
RUBBER SEAL
RUBBER SEAL 1/4 x 3/4 x 45.75
1шт.
Indicates associated part
1шт.
BN304230
RUBBER SEAL
1/4 x 3/4 x 19
2шт.
Indicates associated part
1шт.
36
BN304240
RUBBER INSULATOR
cab roof, rear
1шт.
37
BN304239
RUBBER INSULATOR
cab roof, front
1шт.
38
BN304232
RUBBER INSULATOR
access panel
1шт.
39
BN22055
ROD
3/8"-16, x 2.38, SS, Threaded
2шт.
40
BN50062
LOCK NUT,3/8"-16, Stainless Steel
4шт.
41
BN65271
RETAINER
Filter
1шт.
42
BN65288
FILTER
air, (act. charcoal)
1шт.
43
BN654482
KNOB, 3/8" 16(F)
2шт.
BN50146
WASHER,3/8", Stainless
2шт.
44
BN66131
WORK LAMP,Halogen, 12V, 55W, Clear
Flood - Pedestal Mount
4шт.
BN300873
BULB
Halogen, H3 12 volt
1шт.
Indicates service parts for above Ref. number
1шт.
45
BN319432
FOAM
Roof Panel, Bottom
1шт.
Выбрано товаров: 43
