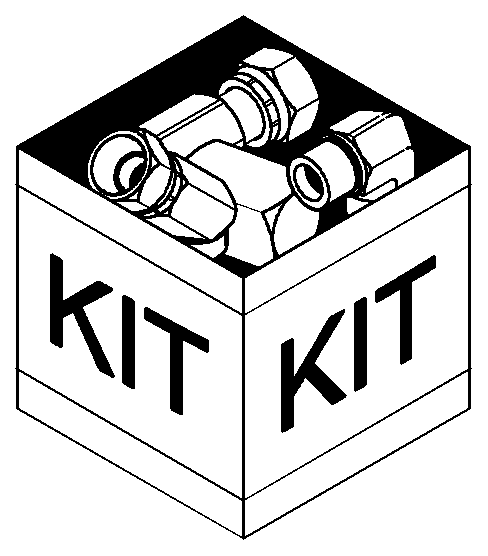

Запчасти Case IH SPX3200 (12-018) - KIT, BOOM LH OUTER 90 REPLACEMENT (78) - SPRAYING

1

84155006

SERVICE KIT

Includes 2 - 13

1шт.

2

87683496

BOOM

1шт.

3

87272614

WASHER,17.5mm ID x 38.1mm OD x 3.18mm Thk

6шт.

4

87272899

BUSHING,15.89mm ID x 25.21mm OD x 68mm L

1шт.

5

86980451

BOLT,Hex, M16 x 130mm, Cl 8.8

1шт.

6

87341861

BOLT,Hex, M16 x 140mm, Cl 10.9

1шт.

7

87310607

WASHER,17.5mm ID x 34mm OD x 5mm Thk

2шт.

8

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

2шт.

9

87706358

HOSE,38.10 mm ID

2шт.

10

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

4шт.

11

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

4шт.

12

87265981

ROLLER,31.75mm OD x 48mm L

1шт.

13

84155009

INSTRUCTION

1шт.
