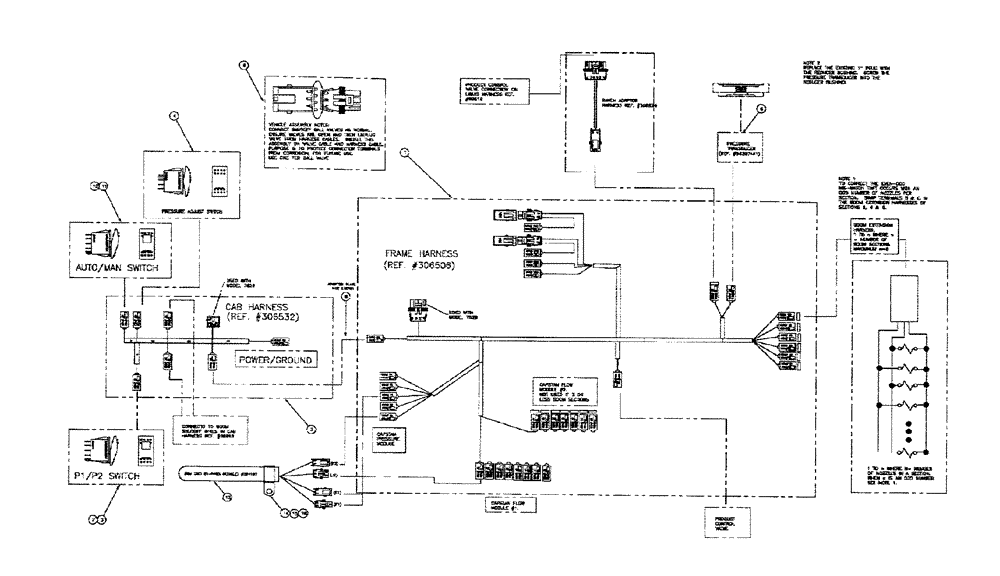

Запчасти Case IH SPX3200 (12-002) - AIM COMMAND ELECTRICAL GROUP (78) - SPRAYING

1

BN306506

WIRE HARNESS

Synchro, SPX

1шт.

2

BN306532

HARNESS

Synchro, SPX cab

1шт.

3

BN65934

SWITCH

Single Pole, On-Off

1шт.

4

BN65942

SWITCH

W/Handle On-Off-On

1шт.

6

342074A1

SENSOR

pressure, AIM, CMD

1шт.

7

BN65938

ROCKER

Actuator - Switch

1шт.

8

BN318073

ELECTRO/HYD CONTACT

ISO.

6шт.

9

BN309260

ADAPTER

PLATE ASSY.

1шт.

10

BN319071

INSTRUCT, A.C to AIM, CMD

1шт.

11

BN306319

SWITCH

Carling, On Off On, Fence Row

1шт.

12

BN306320

SWITCH

Actuator

1шт.

13

BN324107

MODULE

AIM, CMD, by-pass

1шт.

14

BN304440

CLAMP

vinyl coated, 1.75"

1шт.

15

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

16

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

1шт.
