(11-018) - BELLY PANS

Запчасти Case IH SPX3200 (11-018) - BELLY PANS (78) - SPRAYING

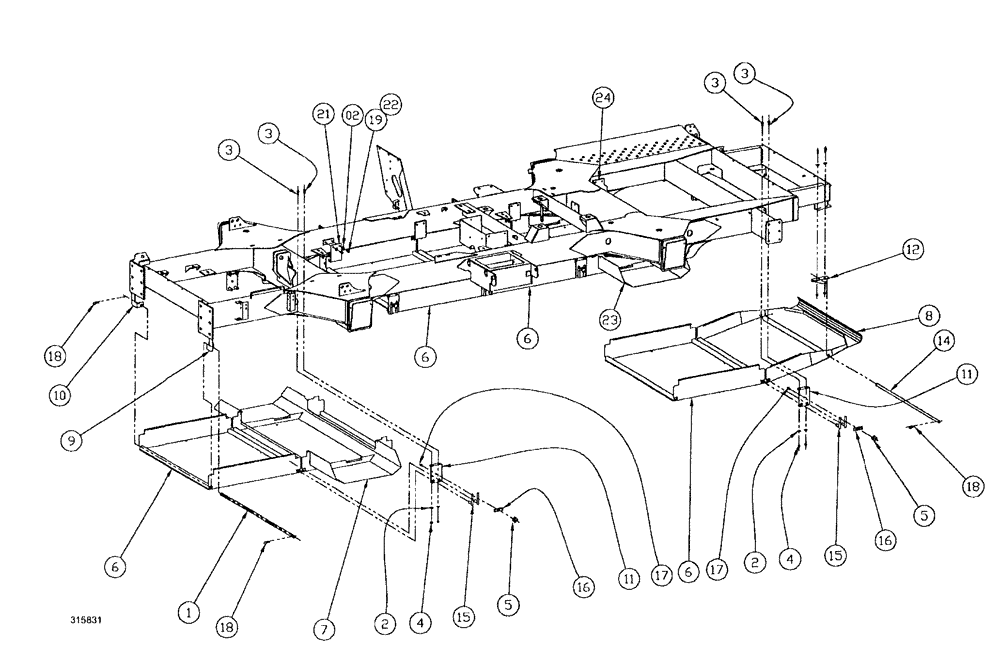

Схема запчастей Case IH SPX3200 - (11-018) - BELLY PANS (78) - SPRAYING
14
4
3
2
3
6
18
12
4
18
5
6
23
15
18
3
11
19
5
21
16
10
6
7
15
24
6
9
8
02
17
16
17
1
2
3
22
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN28497

PIN,19.05mm OD x 1219.2mm L

3/4" CF Round x 48"

1шт.

2

BN300499

WASHER,M10, 10.9

36шт.

3

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

24шт.

4

100037

LOCK NUT,M10 x 1.5, Cl 8

24шт.

5

BN313479

KNOB

1/4-20 SS Insert

12шт.

6

BN315832

PAN

belly, mid

4шт.

7

BN318170

PAN

belly, axle

2шт.

8

BN315834

PAN

belly, front

1шт.

9

BN315845

MOUNTING PARTS

pan, belly, rear, RH

1шт.

10

BN315846

MOUNTING PARTS

pan, belly, rear, LH

1шт.

11

BN315847

MOUNTING PARTS

pan, belly, side

12шт.

12

BN315848

MOUNTING PARTS

pan, belly, front, RH

1шт.

13

BN315849

MOUNTING PARTS

pan, belly, front, LH

1шт.

14

BN315851

PIN

pan, belly, front

1шт.

15

BN319239

PIN

belly pan

24шт.

16

BN315855

CLIP

pan, belly

12шт.

17

BN315861

BOLT

1/4"-20 x 1, CB, G5

12шт.

18

BN71006

COTTER PIN

1/8", #11

4шт.

19

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

12шт.

21

BN316707

MOUNTING PARTS

frame, pan, belly

6шт.

23

BN322723

PAN

belly, front axle

1шт.

24

BN325099

MOUNTING PLATE

belly pan

2шт.
