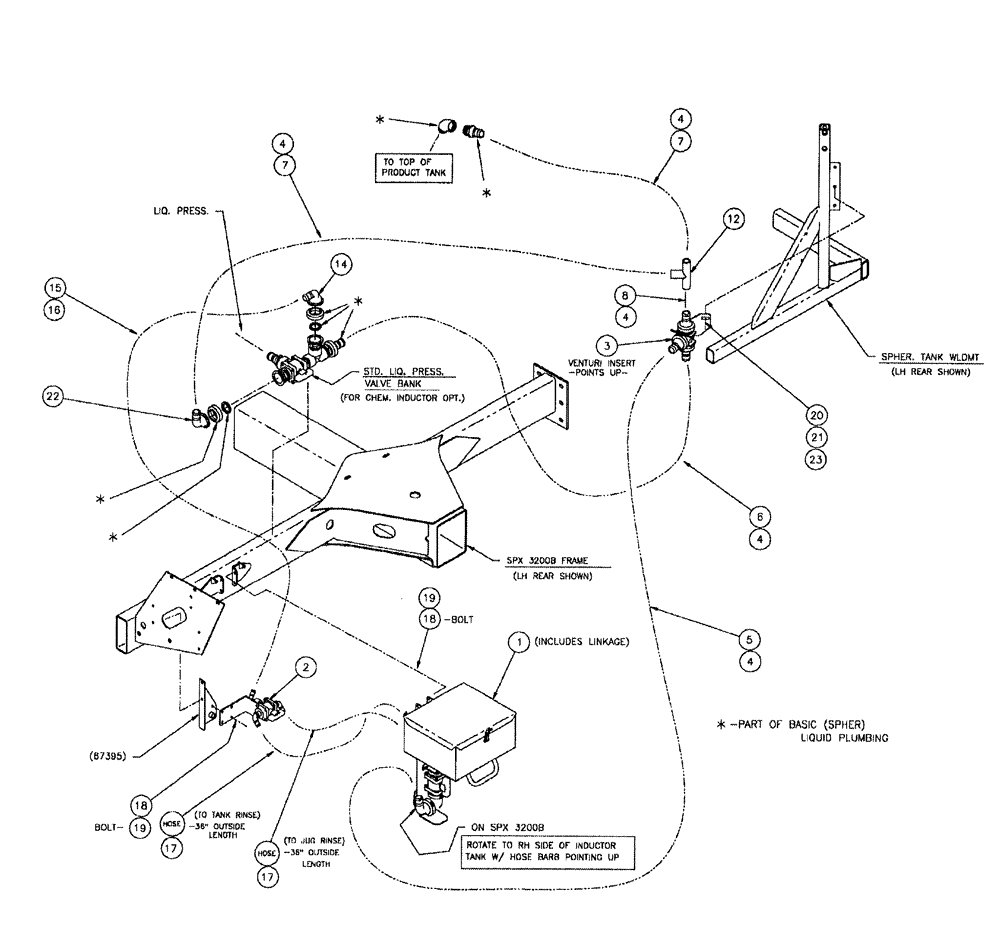

Запчасти Case IH SPX3200 (11-014) - CHEMICAL INDUCTOR-SPHERICAL (78) - SPRAYING

1

BN319931

TANK GRP, w/ linkage

1шт.

2

BN321867

VALVE ASSY., rinse, w/MT

1шт.

3

BN321866

INDUCTOR TEE ASSY., w/MT, Available As Individual Parts Only, See Below

1шт.

BN321622

BRACKET

1шт.

BN303196

TEE,2" Flange x 2" Flange x 2" Flange, Poly

2" Flange

1шт.

BN303199

CLAMP,2" Flange

2" Flange

3шт.

BN303204

GASKET,1-1/2" EPDM Gasket

2"

2шт.

BN306901

FITTING,2" Flange x 1-1/2" Hose Barb, Poly

2" Straight Flange X Hose Barb

3шт.

BN309960

INSERT

Venturi Inductor

1шт.

BN303201

U-BOLT

BOLT "U" Stainless

2шт.

BN50138

WASHER,1/4", SS

4шт.

BN55359

LOCK NUT,1/4"-20, SS

4шт.

4

BN2293386

CLAMP

hose H28 SS

10шт.

5

BN321920

HOSE,1.50" ID x 93.00"

Kanaflex

1шт.

6

BN321921

HOSE,1.50" ID x 28.00"

Kanaflex

1шт.

7

BN321922

HOSE,1.50" ID x 46.50"

Kanaflex

2шт.

8

BN312843

HOSE,1.50" ID x 5.00"

Kaniflex

1шт.

12

BN321662

TEE

hose barb, 1.5" BK poly

1шт.

14

BN322003

FITTING,2" Flange x 1" 90 Degree Hose Barb Elbow

2" Flange x 1" Hose Barb

1шт.

15

BN53743

FLEXIBLE HOSE,1.00" ID x 33.00"

1шт.

16

BN75978

HOSE CLAMP

SS, No. 12 adj., HS, .56-1.25

2шт.

17

BN75956

CLAMP

#10 SS

2шт.

18

BN50254

BOLT,3/8"-16 x 1", Stainless

7шт.

19

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

7шт.

20

BN50593

BOLT,1/2"-13 x 1-1/2", Stainless Steel

1шт.

21

86992215

LOCK NUT,1/2"-13, GC

1шт.

22

BN304321

FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow

2" Flange x 1 1/2" Hose Barb, Poly

1шт.

23

BN50595

WASHER,1/2", Stainless

3шт.
