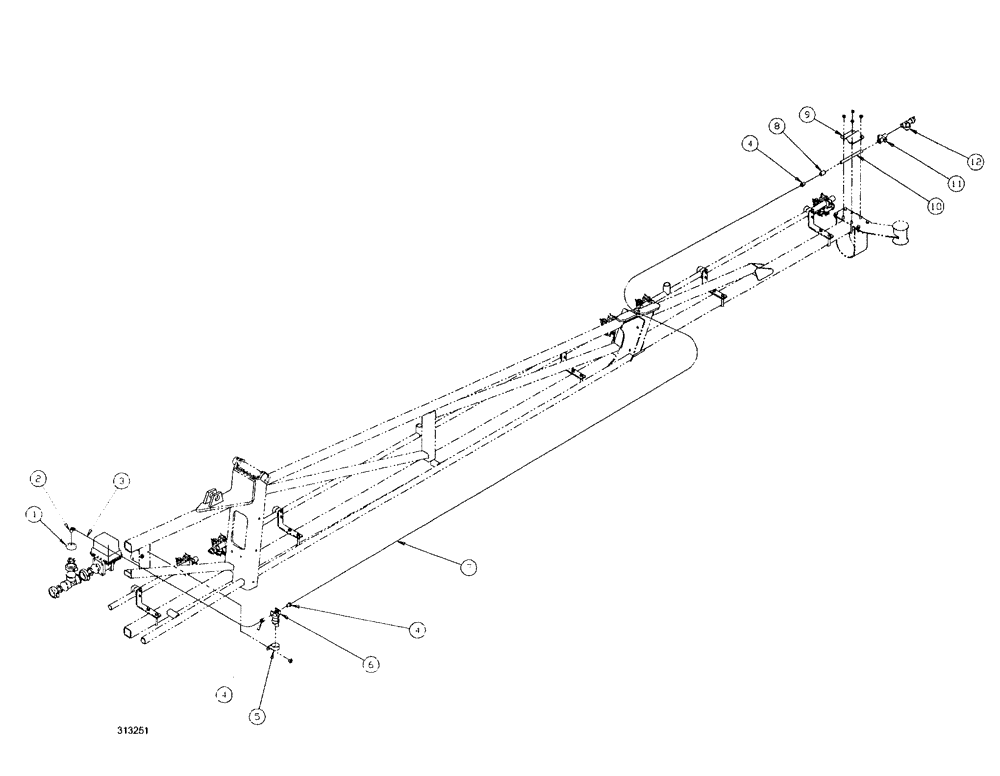

Запчасти Case IH SPX3200 (11-012) - FENCE ROW NOZZLE ASSEMBLY - 90 (78) - SPRAYING

1

BN306897

PLUG,1" Flange, Poly

1" Flange, Poly

1шт.

2

BN2399411

ADAPTER

Elbow, 1/4" MPT x 3/8" OD Tube, Push Lock Fitting

1шт.

3

BN313253

HOSE

3/8 Synflex

1шт.

4

BN2399403

ADAPTER

1/4" MPT x 3/8" OD Tube, Push Lock Fitting

3шт.

5

BN570018

CLAMP

vinyl coated 1-7/16

1шт.

6

BN307938

VALVE

SOLENOID,1/4 NPT

1шт.

7

BN313254

FLEXIBLE HOSE

3/8" Synflex

1шт.

8

BN73015

COUPLING

1/4" NPT SS Full

1шт.

9

BN313307

PLATE

nozzle clamp

1шт.

10

BN313361

NIPPLE,1/4" NPT x 6mm SS

NIPPLE

1шт.

11

BN313256

NOZZLE INJECTION

w/ swivel

1шт.

12

BN313255

NOZZLE INJECTION

w/check valve

1шт.

BN69558

PLUG

spray tip (steel)

1шт.

Indicates part of an assembly

1шт.

BN74619

CAP

w/gasket tee, jet black

1шт.

Indicates part of an assembly

1шт.
