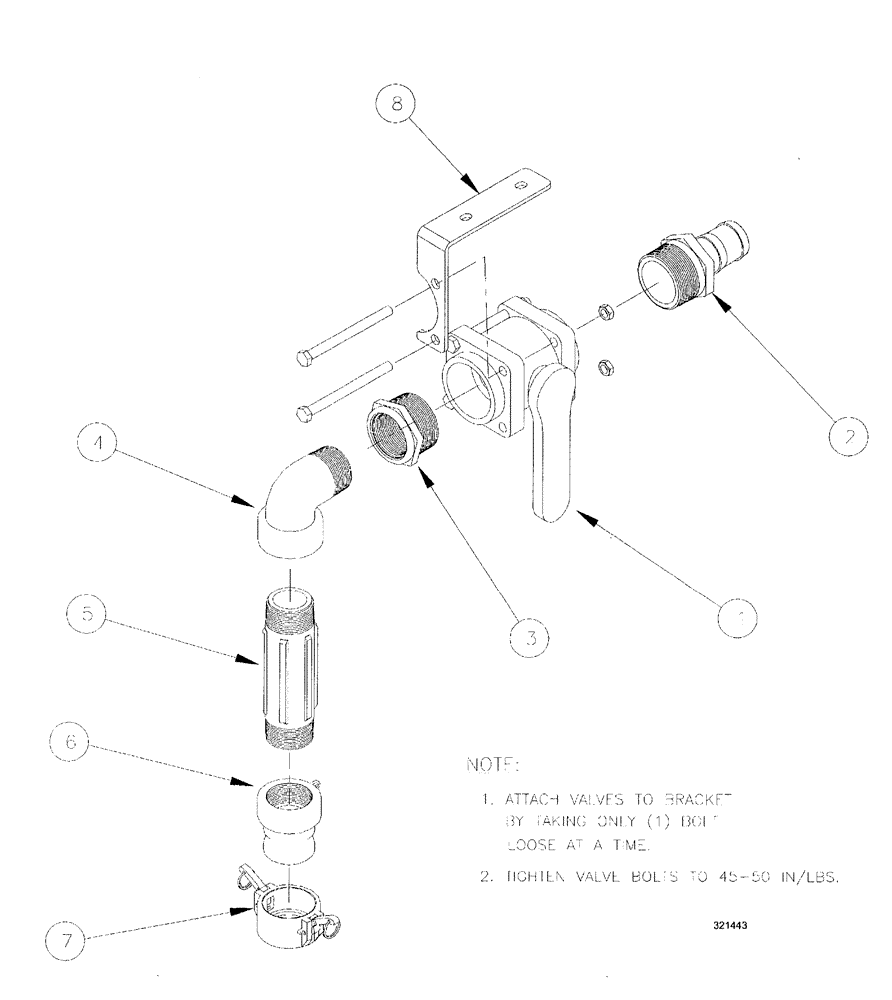

Запчасти Case IH SPX3200 (09-106) - PRESSURE RINSE FILL ASSY. (SPHER TANK) (78) - SPRAYING

1

BN317387

VALVE,2" Standard Port Valve

2" standard

1шт.

2

BN305163

FITTING,2" - 11-1/2 Male NPT x 1-1/2" Hose Barb, Poly

2" NPT x 1.5" Hose Barb

1шт.

3

BN73787

SLEEVE

Bushing - 2"-1 1/2"

1шт.

4

BN73730

ELBOW,1-1/2", Poly

Straight, 1 1/2" Poly

1шт.

5

BN73722

NIPPLE, LUBE,1-1/2" Male NPT x 1-1/2" Male NPT, 6" Long

NIPPLE 1-1/2" x 6" Poly

1шт.

6

BN305169

COUPLING

1.5"cam, lock, male, x FPT

1шт.

7

BN22226

DUST CAP,1-1/2" Cap

Cam Lock 1 1/2"

1шт.

8

BN317386

BRACKET

fill, pressure

1шт.
