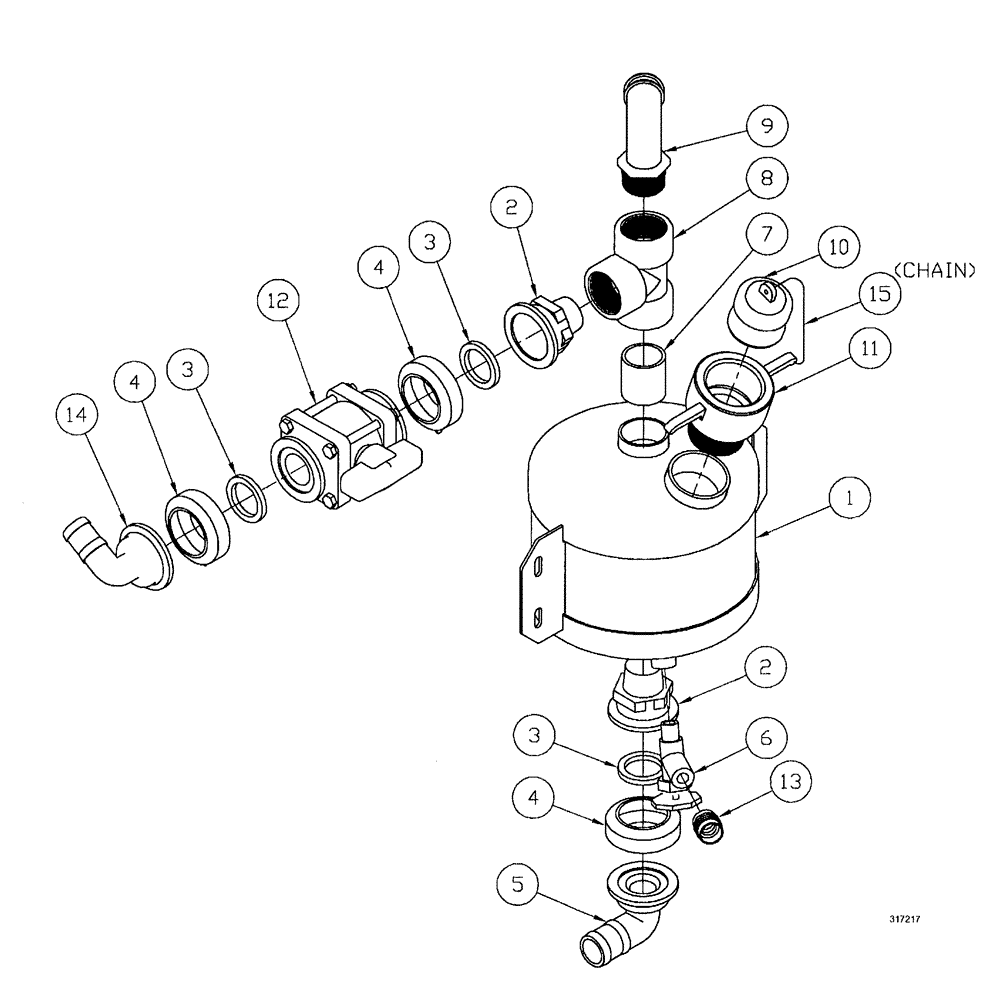

Запчасти Case IH SPX3200 (09-102) - SOAP TANK PLUMBING GROUP (78) - SPRAYING

1

BN317010

TANK

soap

1шт.

2

BN303190

FITTING,2" Flange x 1-1/2" NPT, Poly

2" Flange x 1-1/2" NPT, Poly

2шт.

3

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

3шт.

4

BN303199

CLAMP,2" Flange

2" Standard Flange

3шт.

5

BN304321

FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow

2" Flange x 1 1/2" Hose Barb, Poly

1шт.

6

BN53817

DRAIN VALVE

Plastic, 1/2" NPT

1шт.

7

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1 1/2" Short Poly

1шт.

8

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

1шт.

9

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

1шт.

10

BN22900

PLUG

2" Cam Lock

1шт.

11

BN73775

COUPLING,2" Quick Disconnect x 2" Hose Barb, Poly

2" Cam Lock Poly

1шт.

12

BN304328

VALVE,2" FP Valve w/C-Flng & T Handle

BALL, 2" FL, W/T HNDL

1шт.

13

BN317508

COUPLING

FM-FM, G, hose

1шт.

14

BN303189

FITTING,2" Flange x 1-1/4" 90 Degree Hose Barb Elbow

2" Flange x 1-1/4" Hose Barb, Poly

1шт.

15

BN32485

COIL

CHAIN, ST. #4-6 link

1шт.
