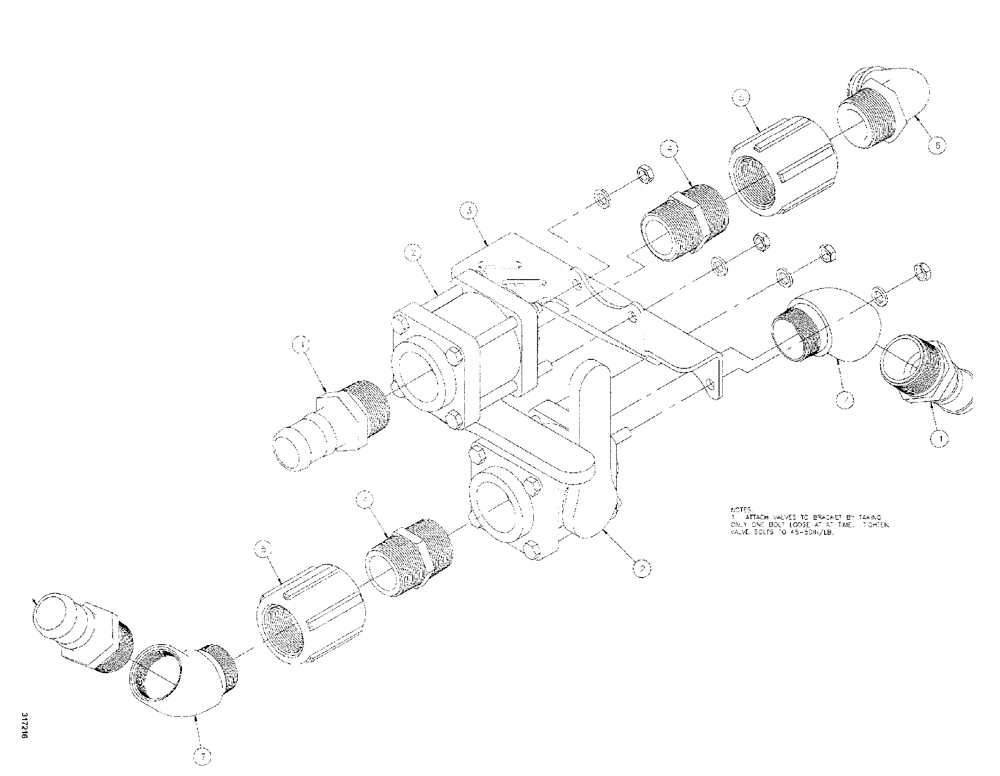

Запчасти Case IH SPX3200 (09-100) - FILL/VENT VALVES GROUP (FOAM TANK) (78) - SPRAYING

1

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2"

3шт.

2

BN73711

VALVE,1-1/2" NPT x 1-1/2" NPT

1 1/2" Ball

2шт.

3

BN316564

MOUNTING PARTS

valve, foamer fill

1шт.

4

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1 1/2" Short Poly

1шт.

5

BN73738

COUPLING

1-1/2" Poly Pipe

1шт.

6

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

1шт.

7

BN310467

ELBOW

1-1/2" NPT x 1-1/2" NPT, Poly, 45º

1шт.
