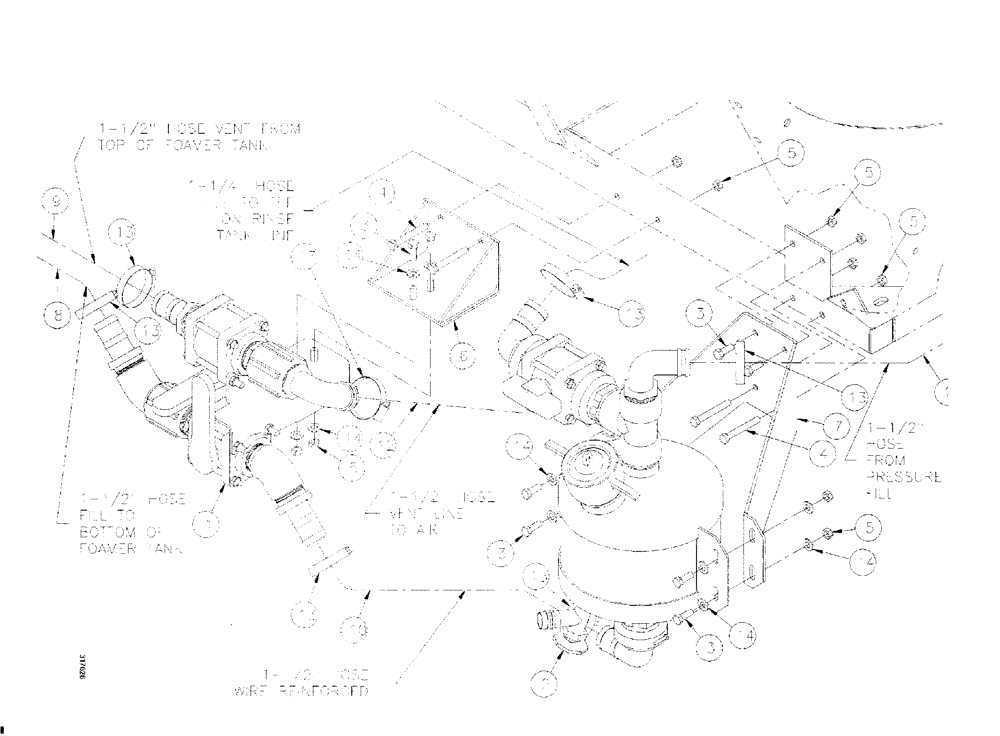

Запчасти Case IH SPX3200 (09-096) - FILL/VENT TANK GROUP (ELLIPTICAL TANK) (78) - SPRAYING

1

NSS

NOT SOLD SEPARAT

GROUP, fill/vent valves

1шт.

See Fig. 09-100

1шт.

2

NSS

NOT SOLD SEPARAT

GROUP, soap tank plumbing

1шт.

See Fig. 09-102

1шт.

3

BN50254

BOLT,3/8"-16 x 1", Stainless

8шт.

4

BN50272

BOLT

3/8-16 x 2.75, Stainless Steel

4шт.

5

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

12шт.

6

BN317247

BRACKET

fill/vent

1шт.

7

BN317168

BRACKET

tank, soap

1шт.

8

BN317409

HOSE,1.50" ID x 74.00"

EPDM

1шт.

9

BN317410

HOSE,1.50" ID x 65.00"

EPDM

1шт.

10

BN317412

HOSE,1.50" ID x 17.00"

Suction

1шт.

11

BN317413

HOSE,1.50" ID x 82.00"

EPDM

1шт.

12

BN317414

HOSE,1.50" ID x 15.00"

EPDM

1шт.

13

BN76093

HOSE CLAMP

#28, SS

1шт.

14

BN50146

WASHER,3/8", Stainless

12шт.
