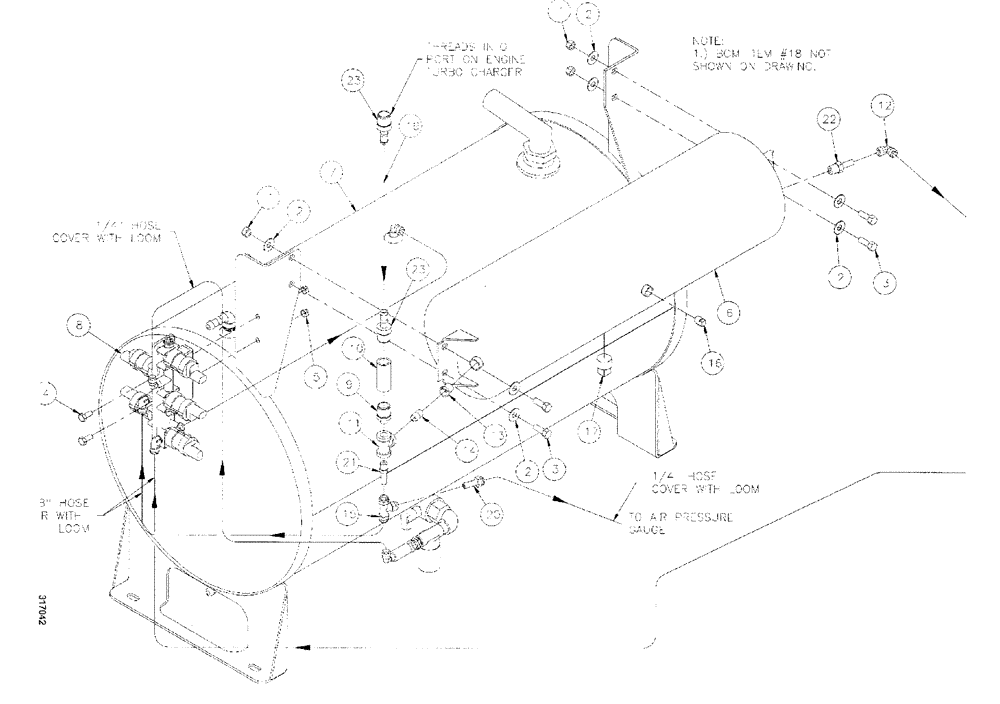

Запчасти Case IH SPX3200 (09-090) - AIR TANK/SOLENOID GROUP (78) - SPRAYING

1

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

2

BN50146

WASHER,3/8", Stainless

8шт.

3

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

4

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

5

86528579

NUT,M8 x 1.25

2шт.

6

BN316553

AIR TANK

8" dia. x 32"

1шт.

7

NSS

NOT SOLD SEPARAT

GROUP, foamer parts, 3200B

1шт.

See Fig. 09-092

1шт.

8

NSS

NOT SOLD SEPARAT

GROUP, valves, solenoids

1шт.

See Fig. 09-094

1шт.

9

BN322468

REDUCER

close nipple 1/4" x 1/2"

1шт.

10

BN322383

CHECK VALVE

1/2PSI, 1/2NPT

1шт.

11

BN2011315

TEE

Pipe 1/4" SS

1шт.

12

BN2399410

HYD CONNECTOR

Tube ULC380

1шт.

13

BN313188

BUSHING

3/8 NPT - 1/4 NPT, SS

1шт.

14

BN73000

NIPPLE, LUBE

NIPPLE 1/4 NPT Close SS

1шт.

15

BN317422

TEE

connector, 3/8", tube

1шт.

16

BN1666253

PLUG

Pipe 1/4 Sq. Hd.

1шт.

17

BN305117

PLUG

3/4 pipe, SS

1шт.

18

BN320218

WIRE HARNESS

T foam, 3200B

1шт.

19

BN322469

HOSE,0.50" ID x 260.00"

1/2" x 260" EPDM

1шт.

20

BN317423

REDUCER

connector, 3/8 x 1/4

1шт.

21

BN317484

FITTING

tube, connector, MT38014

1шт.

22

BN2399407

PIPE FITTING

Connector, Tube MT38038

1шт.

23

BN73510

PIPE FITTING,1/2"Male Thread x 1/2"Hose Barb

barb-1/2" x 1/2" poly

2шт.
