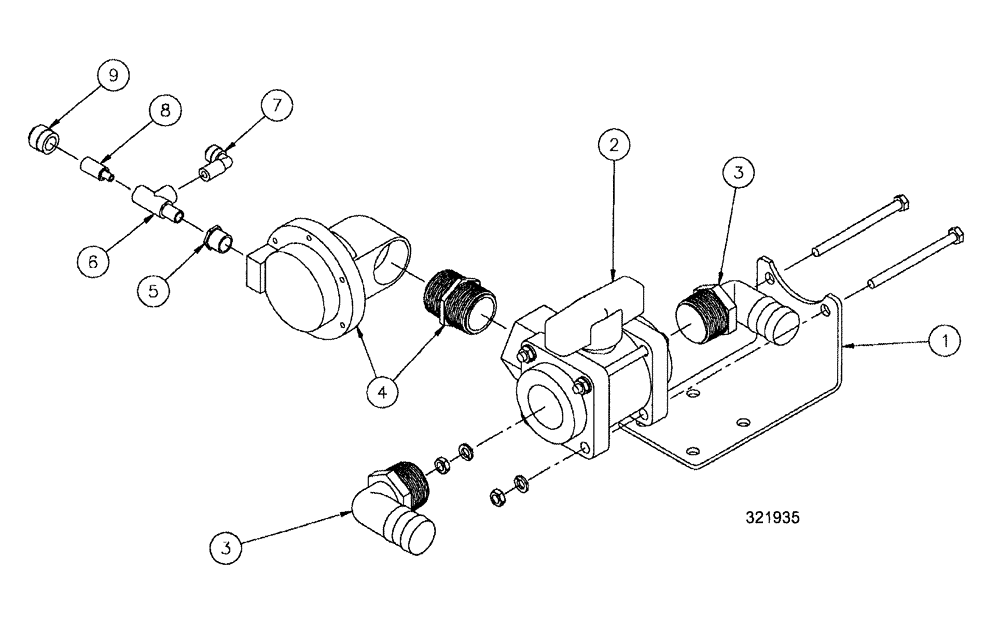

Запчасти Case IH SPX3200 (09-089) - FOAMER VALVE GRP, RT BOOM (78) - SPRAYING

1

BN318828

BRACKET

MOUNT, ball valve 2""

1шт.

2

BN311011

VALVE,1-1/4" NPT Female; Full Port

3 way, 1 1/4 SL

1шт.

3

BN73663

ELBOW,90 Degree Elbow, 1-1/4" Male NPT x 1-1/4" Hose Barb, Poly

1-1/4" NPT x 1-1/4" Hose Barb, 90°, Poly

2шт.

4

BN307636

CHAMBER

Foam Mixing

1шт.

5

BN313188

BUSHING

3/8 NPT - 1/4 NPT, SS

1шт.

6

BN313189

TEE

4-4-4, NPT, SS

1шт.

7

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

1шт.

8

BN322427

VENTURI

Foamer Assembly

1шт.

9

BN315456

TUBE

connector, FC380140

1шт.
