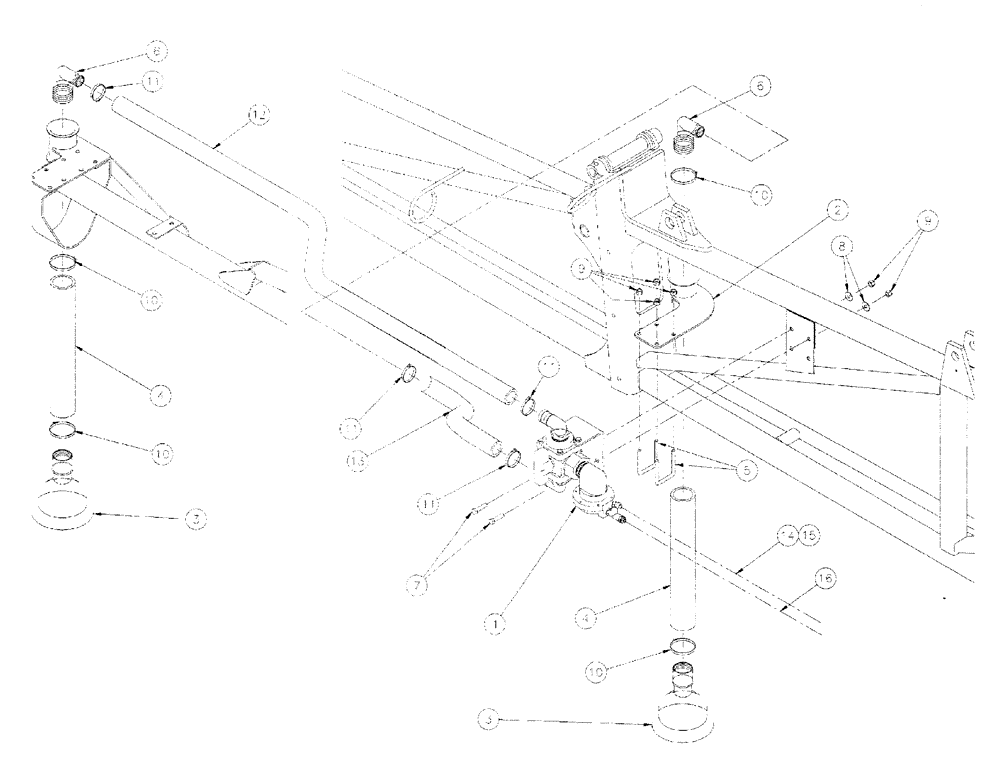

Запчасти Case IH SPX3200 (09-086) - FOAM MARKER BOOM GROUP (78) - SPRAYING

1

NSS

NOT SOLD SEPARAT

GRP., foamer valve, LT boom

1шт.

See Fig. 09-088

1шт.

NSS

NOT SOLD SEPARAT

GRP., foamer valve, RT boom

1шт.

Indicates an "or" situation.

1шт.

See Fig. 09-089

1шт.

2

BN313193

MOUNTING PARTS

inner, foamtube

1шт.

3

BN2403252

BELL

Foam Marker

2шт.

4

BN310941

HOSE,2.00" ID x 16.00"

Drop

2шт.

5

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

2шт.

6

BN310939

FITTING,2" Male Thread x 1-1/4" 90 Degree Hose Barb

2" Hose Barb x 1-1/4" Hose Barb, 90 DEG, Poly

2шт.

7

BN50260

BOLT,3/8"-16 x 1-1/2", Stainless Steel

2шт.

8

BN50146

WASHER,3/8", Stainless

2шт.

9

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

6шт.

10

BN310449

CLAMP,50mm - 65mm

#32, Stainless Steel

4шт.

11

BN320156

HOSE CLAMP

#24, Stainless Steel

4шт.

12

BN322090

HOSE,1.25" ID x 221.00"

Type K

1шт.

13

BN322089

HOSE,1.25" ID x 32.00"

Type K

1шт.

14

BN322094

TUBE

black, 1/4 x 38.5'

1шт.

15

BN322095

LOOM

black, 5/8 x 38.5'

1шт.

16

BN322093

TUBE

black, 3/8 x 38.5'

1шт.
