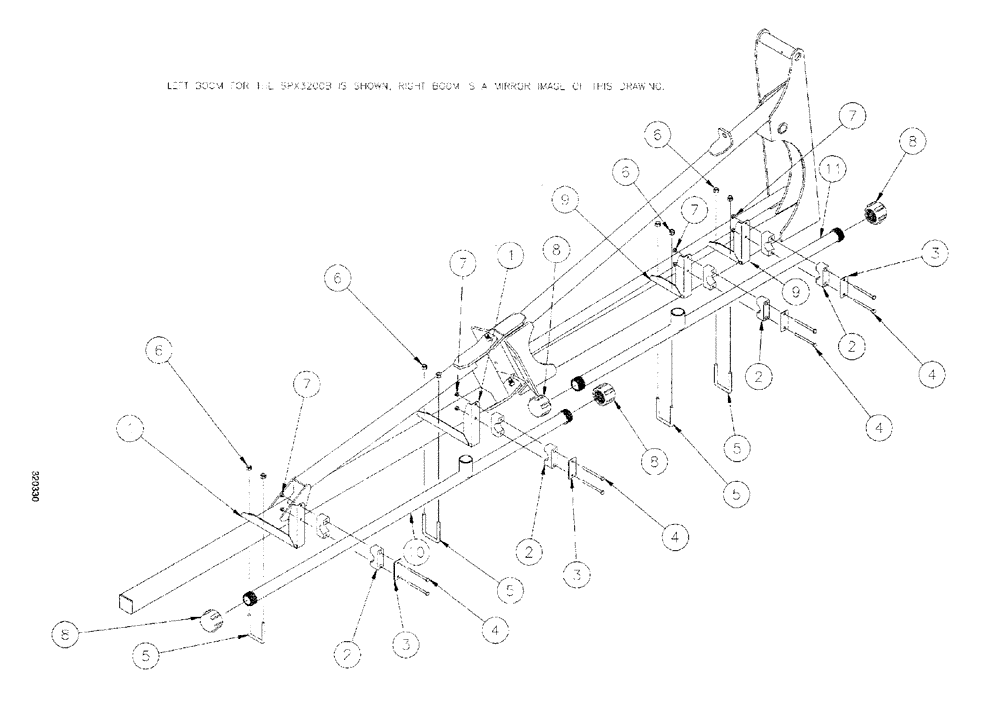

Запчасти Case IH SPX3200 (09-080) - NOZZLE, 80 OUTER 10" (78) - SPRAYING

1

87562807

BRACKET, SUPPORTING

Mount, Spraybar

2шт.

2

BN67054

CLAMP

1.315" OD

4шт.

3

BN309483

PLATE

Clamp Top, Single Clamp

4шт.

4

BN55381

BOLT

1/4-20 3.25, HH, SS

8шт.

5

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

4шт.

6

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

7

BN55359

LOCK NUT,1/4"-20, SS

8шт.

8

BN21618

CAP

1.25"

4шт.

9

BN323957

BRACKET

MOUNT, spray bar

2шт.

10

BN320079

TUBE

10" SP x 6

1шт.

11

BN320096

TUBE

10" SP x 5

1шт.
