(09-066) - BOOM PLBG. GRP., 6-SECT. MID

Запчасти Case IH SPX3200 (09-066) - BOOM PLBG. GRP., 6-SECT. MID (78) - SPRAYING

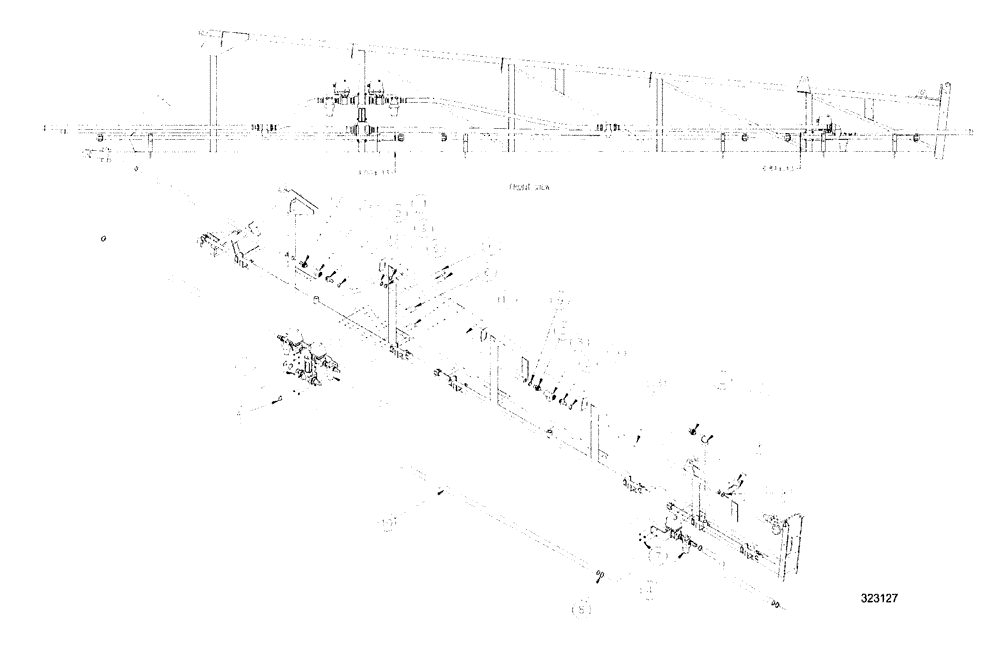

Схема запчастей Case IH SPX3200 - (09-066) - BOOM PLBG. GRP., 6-SECT. MID (78) - SPRAYING
13
9
2
6
8
4
7
9
10
3
2
9
11
8
7
2
1
3
6
9
2
5
2
6
9
9
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN313202

ELBOW

1-1/4" NPT, 90°, Poly

1шт.

2

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb, Poly

5шт.

3

BN73662

TEE

1-1/4", Poly

2шт.

4

NSS

NOT SOLD SEPARAT

GRP., valve plumbing 5 & 6 SECT.

1шт.

See Fig. 09-060

1шт.

5

NSS

NOT SOLD SEPARAT

GRP., valve plumbing 6 SECT.

1шт.

See Fig. 09-067

1шт.

6

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

6шт.

7

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

12шт.

8

BN320156

HOSE CLAMP

#24, Stainless Steel

2шт.

9

BN310447

HOSE CLAMP

#20, Stainless Steel

8шт.

10

BN321478

HOSE,31.75mm ID x 3962.4mm L

EPDM

1шт.

11

BN53850

HOSE

EPDM 1" ID x 36"

1шт.

12

BN321476

HOSE,1.00" ID x 79.00"

EPDM

1шт.

13

BN320876

HOSE,1.00" ID x 75.00"

EPDM

1шт.
