(09-064) - BOOMPLBG. GRP. - 6-SECT. 80 & 90 CENTER

Запчасти Case IH SPX3200 (09-064) - BOOMPLBG. GRP. - 6-SECT. 80 & 90 CENTER (78) - SPRAYING

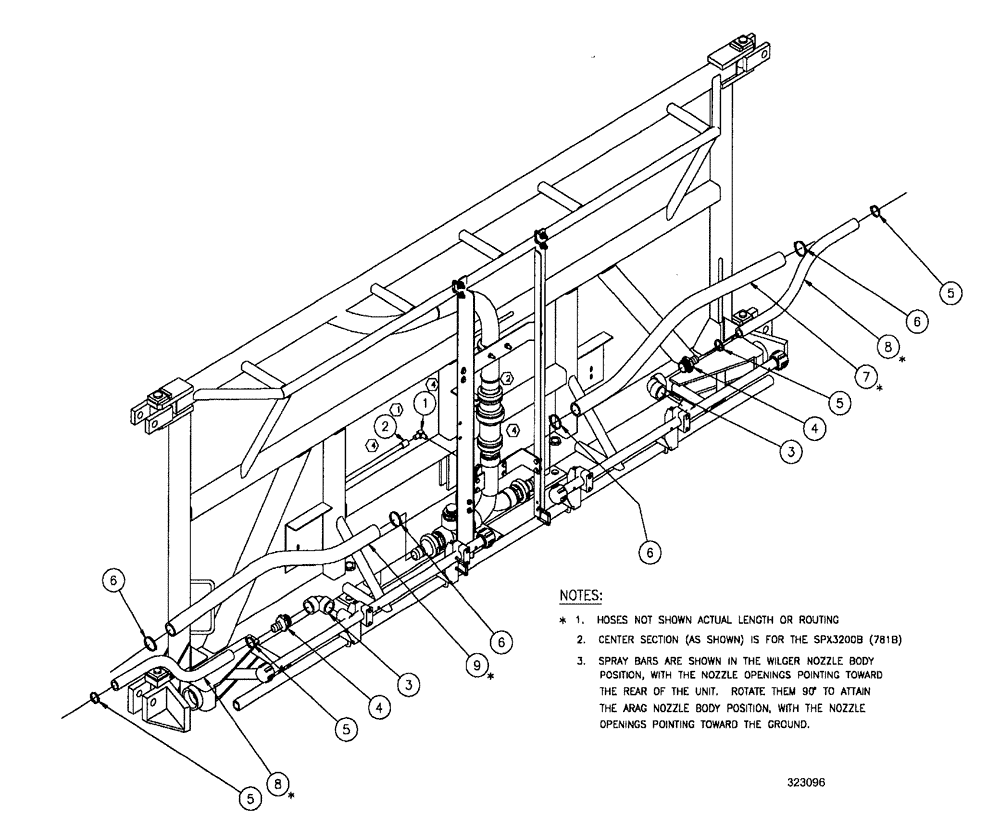

Схема запчастей Case IH SPX3200 - (09-064) - BOOMPLBG. GRP. - 6-SECT. 80 & 90 CENTER (78) - SPRAYING
5
3
3
4
8
9
6
6
6
1
2
7
5
6
5
8
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN53734

ELBOW

90° 1/4" NPT x 9/16" JIC

1шт.

2

BN67393

HOSE

3/8" ID EDPM x 278"

1шт.

3

BN313202

ELBOW

1-1/4" NPT, 90°, Poly

2шт.

4

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb, Poly

2шт.

5

BN310447

HOSE CLAMP

#20, Stainless Steel

4шт.

6

BN310448

HOSE CLAMP

#28, Stainless Steel

4шт.

7

BN321653

HOSE, 1.5" x 153" EPDM

2шт.

8

BN323217

HOSE,1.00" ID x 140.00"

EPDM

2шт.

9

342076A1

HOSE

1.5" x 147", EPDM

1шт.
