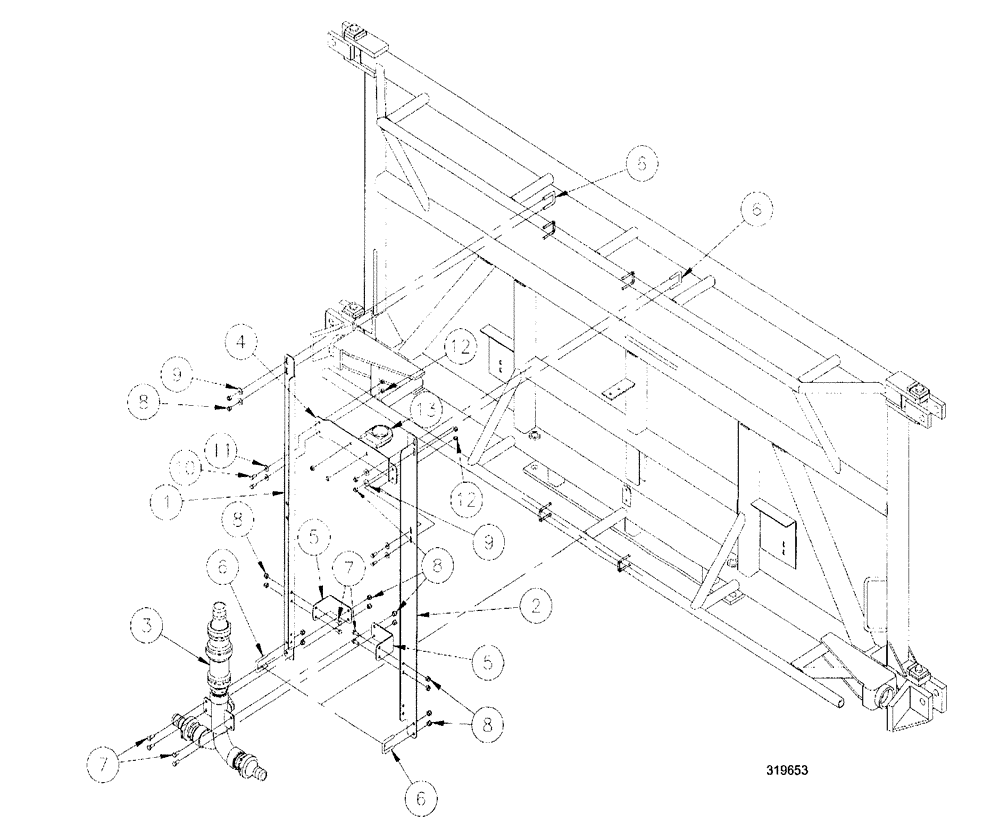

Запчасти Case IH SPX3200 (09-061) - MANIFOLD SUPPORT GROUP (78) - SPRAYING

1

BN319656

BRACKET, SUPPORTING

MOUNT, manifold, L.H.

1шт.

2

BN319655

MOUNTING PLATE

manifold, R.H.

1шт.

3

NSS

NOT SOLD SEPARAT

GRP., manifold, 5 SECT., (see 9-62)

1шт.

See Fig. 09-062

1шт.

4

BN325194

BRACKET, SUPPORTING

MOUNT, clamp, 5 center section

1шт.

5

BN325193

BRACKET

3-Way Manifold

2шт.

6

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

BOLT "U" Square Bend 3/8"-16 x 1.31 wide x 2.00 Deep

4шт.

7

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

8шт.

8

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

16шт.

9

BN50146

WASHER,3/8", Stainless

4шт.

10

BN50476

BOLT,5/16"-18 x 0.75", Stainless

4шт.

11

BN50142

WASHER,5/16", Stainless Steel

4шт.

12

BN55361

NUT,5/16"-18, Nylon, Stainless

4шт.

13

BN320384

U-BOLT

BOLT "U" Clamp, 2" Pipe

1шт.
