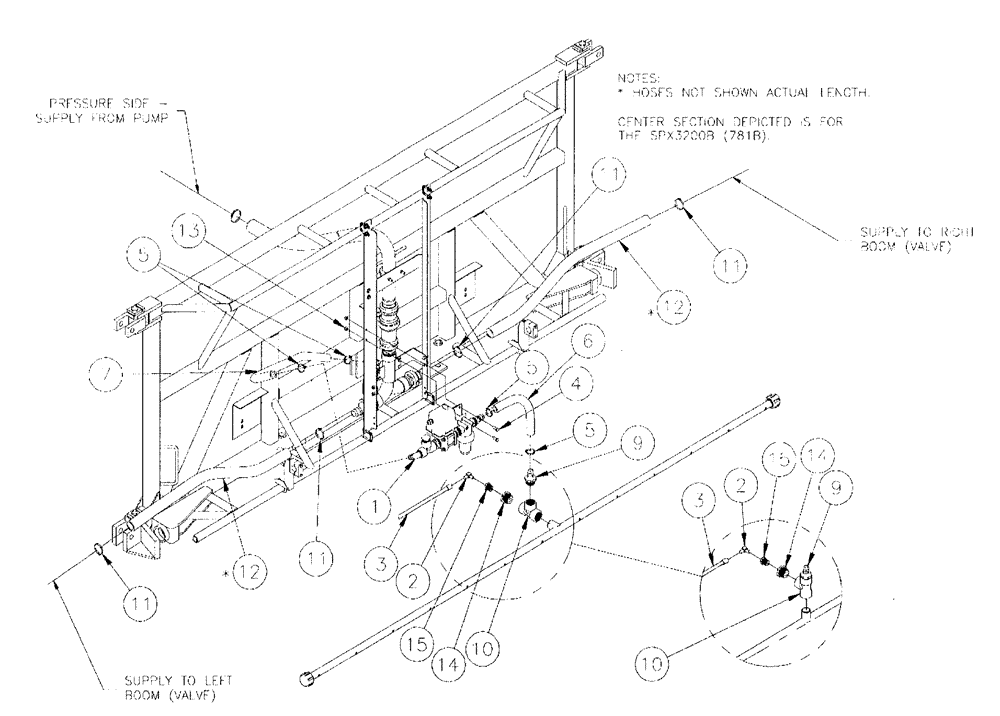

Запчасти Case IH SPX3200 (09-053) - CENTER BOOM PLBG (5-SECT. LIQ.) (78) - SPRAYING

1

NSS

NOT SOLD SEPARAT

GRP., valve plumbing, 5 center section

1шт.

See Fig. 09-054

1шт.

2

BN53734

ELBOW

90° 1/4" NPT x 9/16" JIC

1шт.

3

BN67393

HOSE

3/8" ID EDPM x 278"

1шт.

4

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

5

BN310447

HOSE CLAMP

#12, 304 SS

4шт.

6

BN66859

HOSE

1 " EPDM x 23.00"

1шт.

7

BN320882

HOSE, 1" x 27" EPDM

1шт.

9

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb, Poly

1шт.

10

BN73662

TEE

1-1/4", Poly

1шт.

11

BN310448

HOSE CLAMP

#28, Stainless Steel

4шт.

12

BN321653

HOSE, 1. 5" x 153" EPDM

2шт.

13

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.
