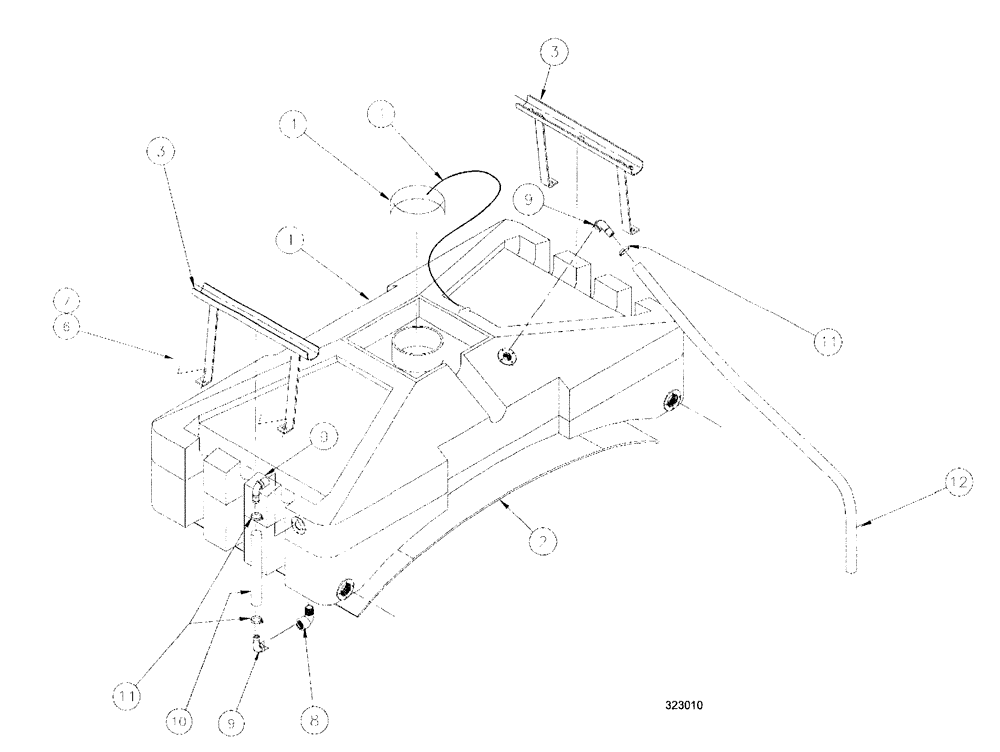

Запчасти Case IH SPX3200 (09-052) - RINSE TANK PACKAGE, SADDLE (SS ELLIPT. TANK) (78) - SPRAYING

1

BN321007

TANK

top mount, EL, 70 GAL.

1шт.

2

BN322565

RUBBER

MAST, 139" x 1/8 x 6

1шт.

3

BN323384

BRACKET

holddown, rinse tank

2шт.

6

BN68212

BOLT

3/8-16 x 4, HH, SS

4шт.

7

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

8

BN73566

ELBOW,3/4" Male NPT x 3/4" Female NPT, Poly

90, Street, 3/4" Poly

1шт.

9

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

3шт.

10

BN322785

FLEXIBLE HOSE,0.75" ID x 11.00"

Clear

1шт.

11

BN310446

HOSE CLAMP

#12, Stainless Steel

3шт.

12

BN323133

HOSE

HOSE, 3/4" x 96" clear

1шт.
