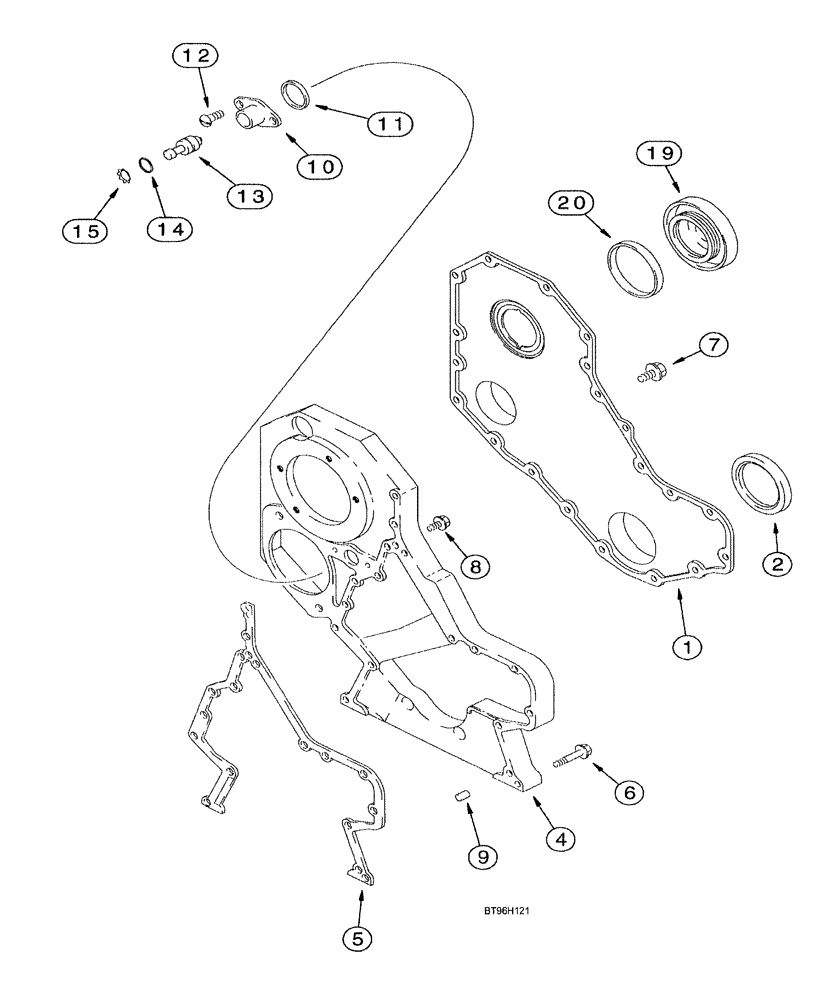

Запчасти Case IH SPX3200 (03-012) - CYLINDER BLOCK FRONT COVER (10) - ENGINE

1

J935583

COVER

ASSY.

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - Oil, Front

1шт.

Order Seal Kit A77889 or A77890, See Figure 03-040

1шт.

4

J936256

HOUSING

1шт.

5

J938156

GASKET,0.79mm Thk

HOUSING

1шт.

6

87015867

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

11шт.

7

J924962

FLANGE BOLT

FLANGE, M8 x 16

11шт.

8

J926846

FLANGE BOLT

Hex Flange, 8 - 1.25 X 20 MM, Class 10.9

5шт.

9

J900257

PIN,10.01mm OD x 16mm L

10 mm x 16 mm long

2шт.

10

J919683

HOUSING

PIN, timing

1шт.

11

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Retaining

1шт.

12

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

13

J903924

PIN,18.87mm OD x 55mm L

1шт.

14

J913994

O-RING

1шт.

15

100-2587

SNAP RING,0.875", Int, #87

1шт.

19

J903463

PLUG,M63 x 5

front access

1шт.

20

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

J823494

SEALANT

3 oz.

1шт.

Use with J935582, Ref. 1

1шт.
