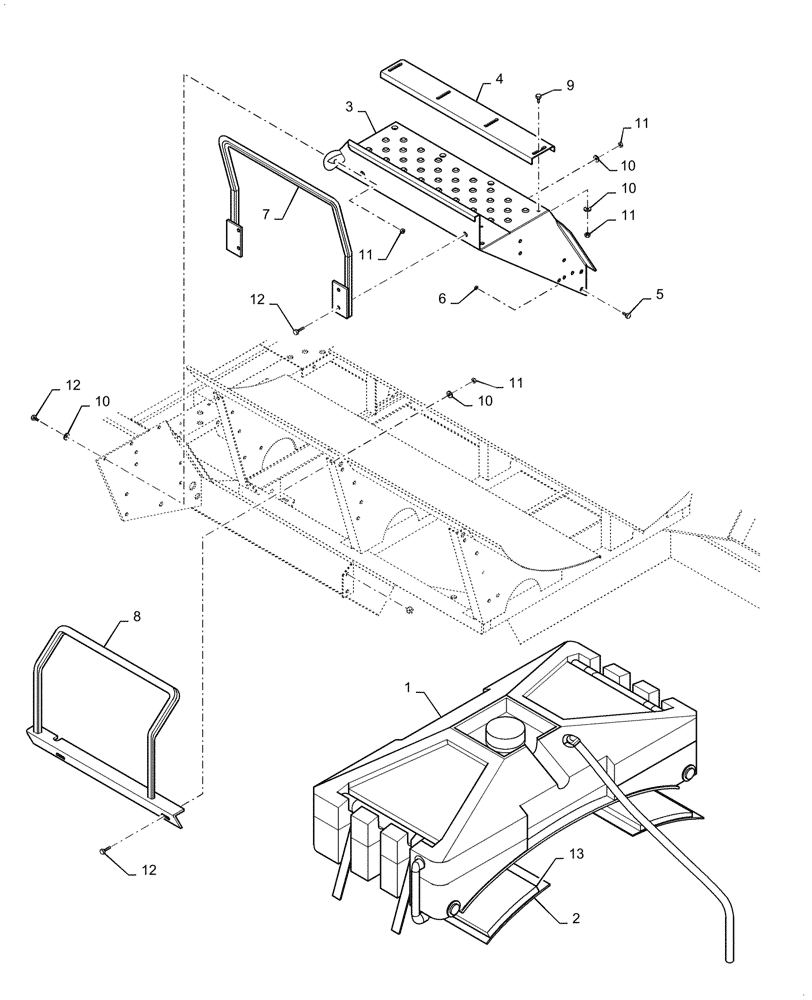

Запчасти Case IH SPX3200 (09-049) - DECK PACKAGE, W/SADDLE RINSE TANK (SS ELLIPTICAL) (78) - SPRAYING

1

NSS

NOT SOLD SEPARAT

PKG., rinse tank, saddle

1шт.

See Fig. 09-052

1шт.

2

BN323330

FOAM INSULATION

BLANKET, rinse tank

2шт.

3

BN322075

LOAD DECK

L.H. ELLIP.

1шт.

4

BN24513

BRACKET

12 GA HRS 7.0 x 34.50

1шт.

5

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

6

86992215

LOCK NUT,1/2"-13, GC

2шт.

7

BN318556

RAIL

hand LH outer

1шт.

8

BN318616

RAIL

hand, inner, LH

1шт.

9

343299A1

SET SCREW,3/8"-16 X 1.00", Stainless Steel

4шт.

10

BN50145

WASHER

3/8, G5

13шт.

11

88902

NUT,3/8"-16

15шт.

12

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

11шт.

13

BN324583

FOAM

blanket

2шт.
