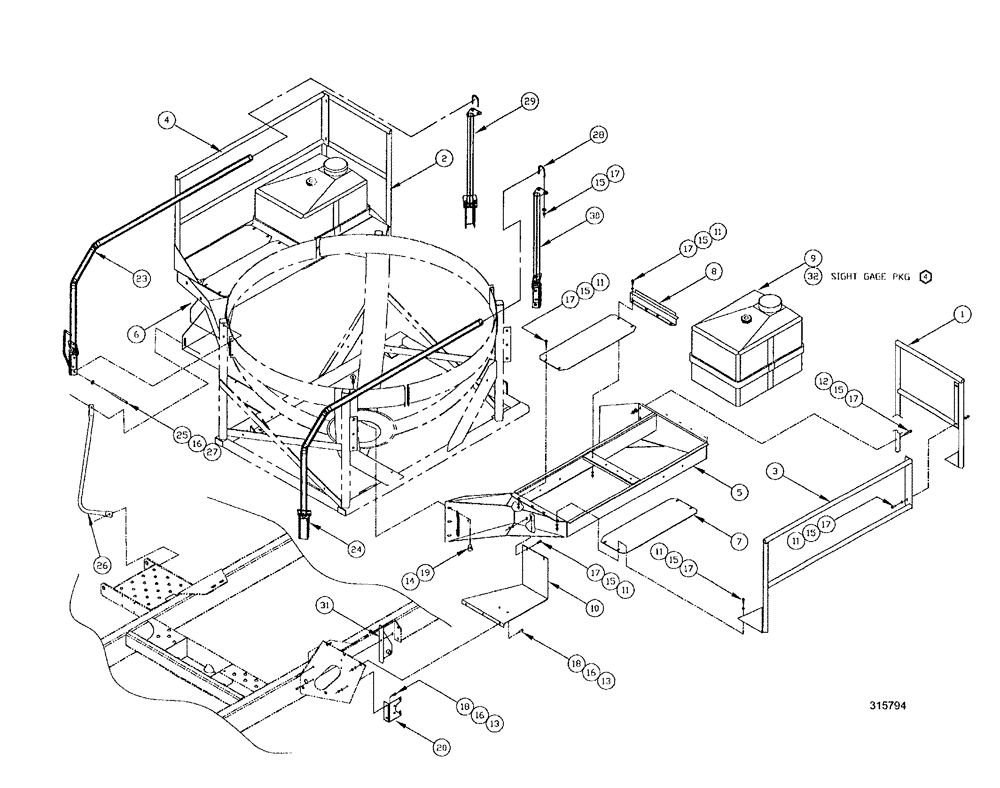

Запчасти Case IH SPX3200 (09-044) - RINSE AND DECK ASSEMBLY - SPHERICAL TANK, GRAY (78) - SPRAYING

1

BN65109

SIDE RAIL

end, L.H.

1шт.

2

BN65171

SIDE RAIL

end, R.H.

1шт.

3

BN67912

RAIL

Side Safety LH

1шт.

4

BN68000

RAIL

Side Safety RH

1шт.

5

BN68006

PLATFORM ASSY.

Walkway Mount LH

1шт.

6

BN68005

PLATFORM ASSY.

Walkway Mount RH

1шт.

7

BN68001

PLATE

SHEET, deck plate

4шт.

8

BN25399

PLATE

Clamp 12 ga x 4.5 x 17

2шт.

9

NSS

NOT SOLD SEPARAT

TANK ASSY., 35 GAL.3200B

2шт.

See Fig. 09-048

1шт.

10

BN67918

STEP

1шт.

11

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

30шт.

12

BN50239

BOLT,5/16"-18 x 1.75", Stainless

4шт.

13

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

7шт.

14

BN50691

BOLT,Hex, 1/2" - 13 x 1", SST

1/2"-13 x 1, Stainless Steel

12шт.

15

BN50142

WASHER,5/16", Stainless Steel

72шт.

16

BN50145

WASHER

3/8, G5

21шт.

17

280736

NUT,5/16"-18, GC

30шт.

18

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

7шт.

19

86992215

LOCK NUT,1/2"-13, GC

12шт.

20

BN29447

BRACKET

10 ga HRS 5.92" x 6.25"

1шт.

23

BN311740

HANDRAIL

RH

1шт.

24

BN312102

HANDRAIL

LH

1шт.

25

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

8шт.

26

BN312670

RAIL ASSY.

RH

1шт.

27

88902

NUT,3/8"-16

8шт.

28

BN305201

U-BOLT

BOLT "U" .31 x 1.75, 304SS

2шт.

29

BN313313

MOUNTING PARTS

support, RH

1шт.

30

BN313314

MOUNTING PARTS

support, LH

1шт.

31

BN67395

BRACKET

Valve

1шт.

32

PKG., sight gage, rinse (SPHER)

2шт.

See Fig. 09-046

1шт.
