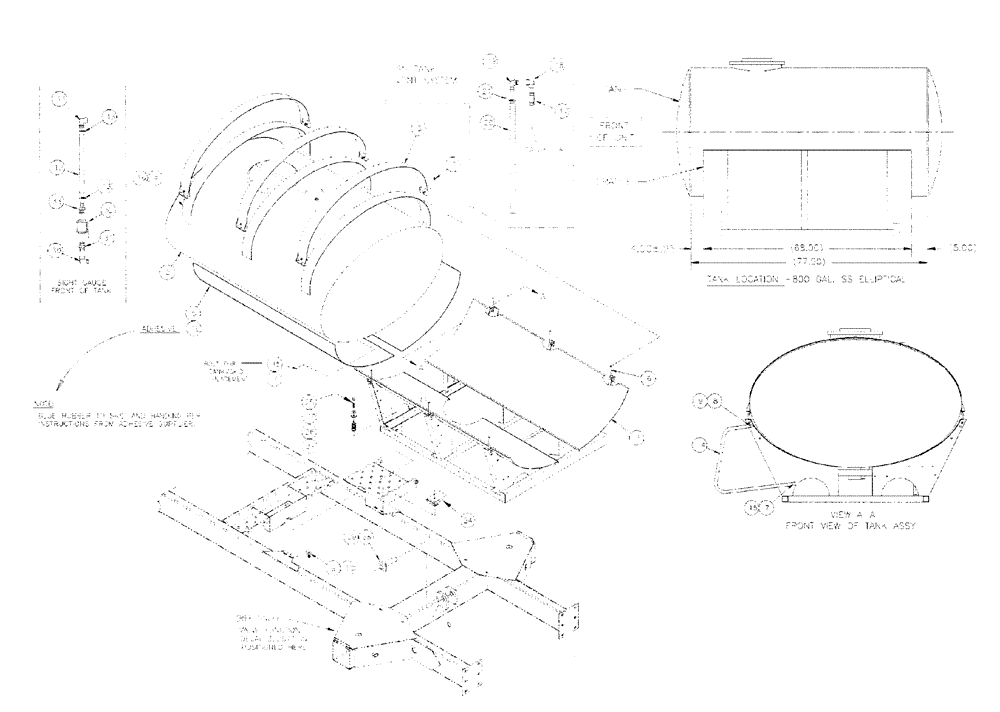

Запчасти Case IH SPX3200 (09-042) - TANK PACKAGE - 3 PT 800 GALLON ELLIPTICAL-3" (78) - SPRAYING

1

BN322363

SKID PLATE

3PT 800 ELP 3"

1шт.

2

BN322332

TANK, 800 GAL., SS

1шт.

3

BN29430

STRAP

Tankband - 750 Gallon

3шт.

4

BN24121

LINER

1/8" EPDM 4" x 96"

3шт.

5

BN24122

LINER

1/8" EPDM 36" x 66"

2шт.

6

BN50707

BOLT

J-3/8-16 x 4.5

6шт.

7

BN315825

LOCK NUT

3/8-16, NLN, G8

8шт.

8

BN306620

BOLT

1/2-13 x 1.25, HH, G8

1шт.

9

86992215

LOCK NUT,1/2"-13, GC

5шт.

10

BN300176

WASHER

Flat, 1/2, G8

4шт.

11

BN73684

ELBOW

90° 1" MPT x 3/4" Barb

1шт.

12

BN320450

HOSE,0.75" ID x 33.50"

Clear

1шт.

13

BN75978

HOSE CLAMP

SS, No. 12 adj., HS, .56-1.25

2шт.

14

BN316734

HANDRAIL

tank skid, R.H.

1шт.

15

9670285

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

2шт.

16

BN54039

ADHESIVE

Spray 18 oz

3шт.

17

BN320169

FITTING

NIPPLE, 1" NPT x 4"

1шт.

18

BN73742

ELBOW

90º x 1 Poly

1шт.

19

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.

20

BN66873

HOSE

1" EPDM x 84.0"

1шт.

21

BN75990

HOSE CLAMP

#16, Stainless Steel

1шт.

24

BN319880

SPACER

SPHR. basket

2шт.

25

9627857

BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 5

2шт.

26

BN312850

SPRING

1" ID x 4" Lg-Die

2шт.

27

BN50157

WASHER

3/4, G5

2шт.

28

BN300279

PIN

1 1/4" X 4 1/2"

1шт.

29

BN148976

PIN, ROLL

1/4" x 1 3/4"

1шт.

30

BN53682

ELBOW

90, street, 1" poly

1шт.

31

BN73649

NIPPLE,1" x 3/4" Poly Reducing Nipple

1" x 3/4" Poly

1шт.

32

BN73564

VALVE

3/4" Ball Poly 2 Way

1шт.

33

BN73561

FITTING

BARB, 3/4 NPT, 3/4 HS

1шт.
