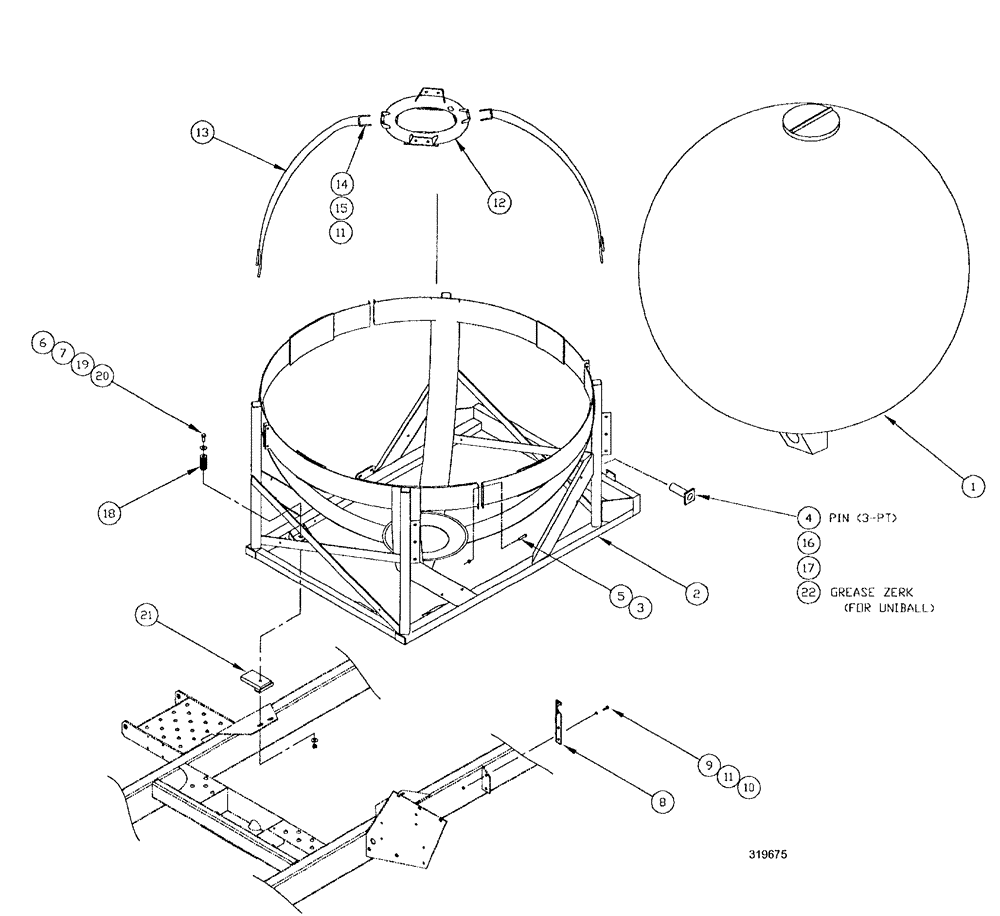

Запчасти Case IH SPX3200 (09-036) - TANK PACKAGE, 3PT SPHERICAL-GRAY (78) - SPRAYING

1

BN317209

TANK

ASSY., 750 SPHR 781B

1шт.

2

344202A1

BASKET ASSY

Spherical, 3PT

1шт.

2

BN319371

LINER

Tank, Spherical

4шт.

Not Shown

1шт.

2

BN54039

ADHESIVE

Spray 18 oz

1шт.

Not Shown

1шт.

3

BN50267

BOLT,3/8"-16 x 2", Stainless Steel

8шт.

4

BN300279

PIN

1 1/4" X 4 1/2"

1шт.

5

88902

NUT,3/8"-16

8шт.

6

86992215

LOCK NUT,1/2"-13, GC

4шт.

7

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

4шт.

8

BN322048

SUPPORT

SUPPORT, valve

1шт.

9

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

11

BN50146

WASHER,3/8", Stainless

34шт.

12

BN319677

RETAINER

Assembly, Spherical Basket

1шт.

12

BN319370

LINER

Tank Retainer

4шт.

Not Shown

1шт.

13

BN319351

STRAP

tank retainer

4шт.

14

BN312959

U-BOLT

BOLT "U" 3/8" square bend, 2.06 ID

8шт.

15

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

16шт.

16

BN148976

PIN, ROLL

1/4" x 1 3/4"

1шт.

17

BN2298335

WASHER

hardened 1 1/4

1шт.

18

BN312850

SPRING

1" ID x 4" Lg-Die

2шт.

19

9627857

BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 5

2шт.

20

BN50157

WASHER

3/4, G5

2шт.

21

BN319880

SPACER

SPHR. basket

2шт.

22

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

1шт.
