(09-035) - FEED HOSE RH/LH

Запчасти Case IH SPX3200 (09-035) - FEED HOSE RH/LH (78) - SPRAYING

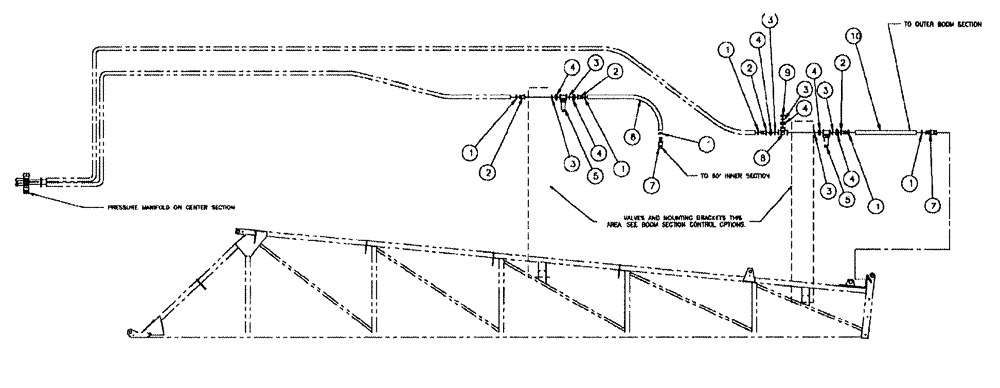

Схема запчастей Case IH SPX3200 - (09-035) - FEED HOSE RH/LH (78) - SPRAYING
1
3
4
4
6
9
4
7
4
3
8
1
5
3
4
2
3
5
1
2
1
2
10
4
1
1
2
3
3
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN310447

HOSE CLAMP

#20, Stainless Steel

6шт.

2

BN304319

FITTING,1" Flange x 1" Hose Barb, Poly

1" FLNG x 1" barb

4шт.

3

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1" x 7/32" thick

6шт.

4

BN303203

CLAMP,1" Flange

1FL

6шт.

5

BN311711

STRAINER ASSY.

1" -50 mesh flange

2шт.

6

BN53756

HOSE,42.00"

1шт.

7

BN2406318

COUPLING

E 1" poly

2шт.

8

405787A1

TEE,1" Flanged Tee

poly 1 flange manifold

1шт.

9

BN306897

PLUG,1" Flange, Poly

1" Flange, Poly

1шт.

10

BN66636

HOSE, BULK

HOSE, METERS 1" EPDM x 65.0"

1шт.

BN570007

STRAP

Black, 14-1/2" Long

25шт.
