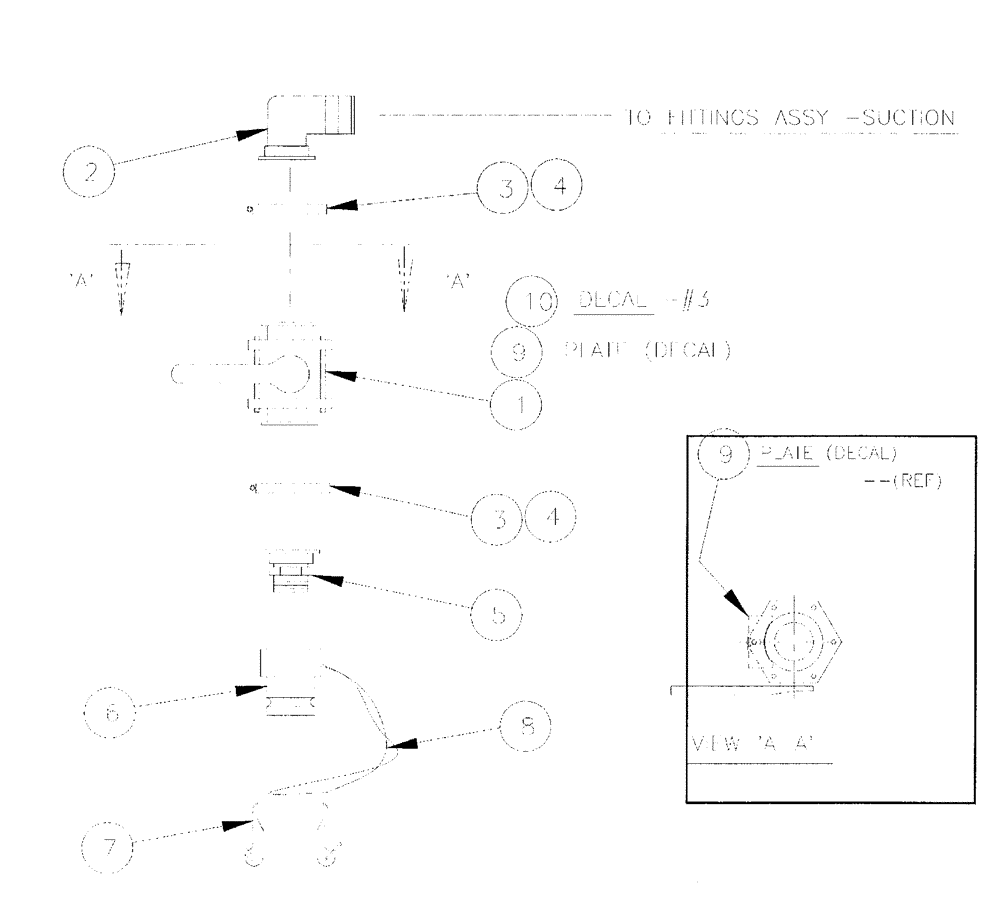

Запчасти Case IH SPX3200 (09-030) - VALVE ASSY, PRODUCT SUCTION (SS ELLIPT. TANK) (78) - SPRAYING

1

BN321070

VALVE,3" Flange

Ball, 3" Flange

1шт.

2

BN321082

FITTING,3" Flange x 3" 90 Degree Hose Barb Elbow

BARB, 90, manifold, 3' x 3" H

1шт.

3

BN321074

CLAMP,101.6mm

Manifold, 3"

2шт.

4

BN321073

GASKET,3" Flange, EPDM

Manifold, 3"

2шт.

5

BN321078

ADAPTER

Manifold, 3" x 3" Male

1шт.

6

BN318086

COUPLING

3" cam (M TO F)

1шт.

7

BN2393384

CAP

Coupler 3" Dust Poly

1шт.

8

BN322573

SECURING STRAP

lanyard, rubber

1шт.

9

BN323114

PLATE, MTG. decal (SS)

1шт.

10

BN323103

DECAL

valve, PROD., fill

1шт.
