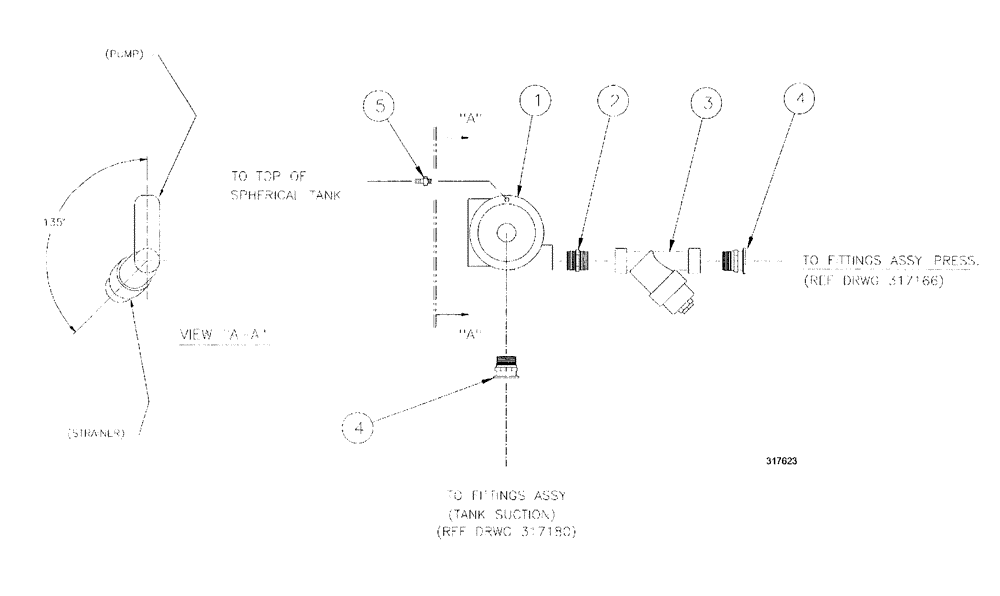

Запчасти Case IH SPX3200 (09-029) - PUMP AND STRAINER ASSEMBLY - SPHERICAL TANK (78) - SPRAYING

1

NSS

NOT SOLD SEPARAT

PUMP, HYPRO., HV

1шт.

See Fig. 09-108

1шт.

2

BN73780

NIPPLE

2" x 1.5 Red Poly

1шт.

3

BN304320

FILTER STRAINER,2" x 2" Y Strainer

line, 2, 12 mesh

1шт.

4

BN314241

MANIFOLD,2" Full Port Flange x 2" Male NPT, Poly

2" MPT x 2" Flange, Poly

2шт.

5

BN72040

FITTING,1/8" MPT x 1/4" HB

Hose Barb, 1/8" NPT x 1/4" ID HS

1шт.
