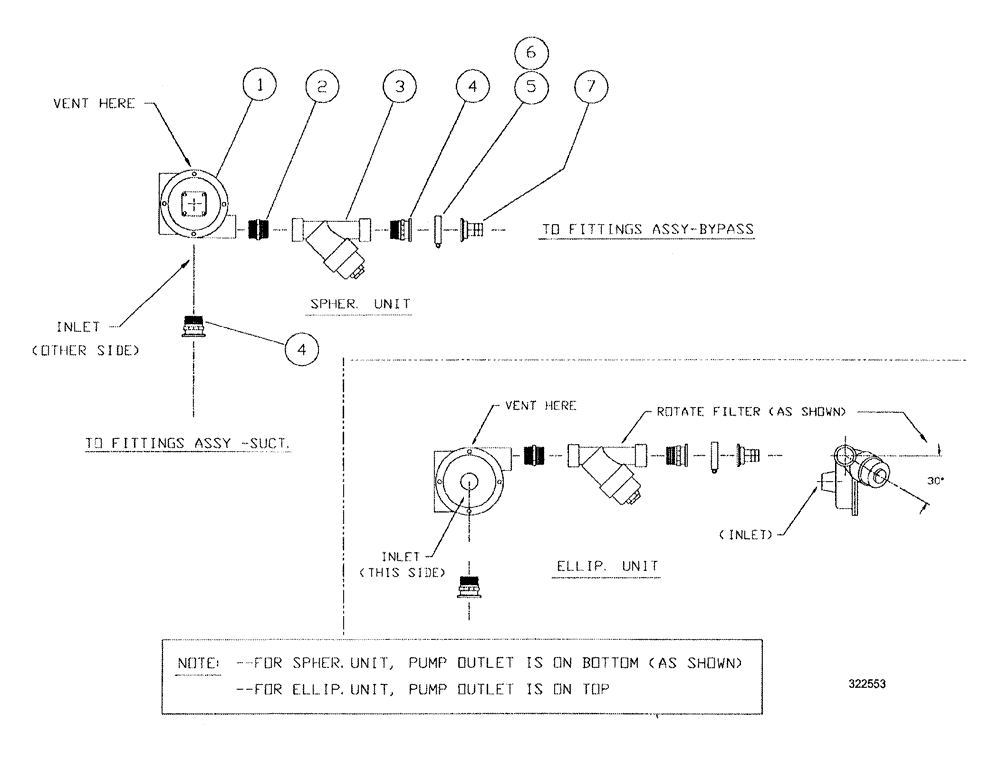

Запчасти Case IH SPX3200 (09-028) - PUMP AND STRAINER ASSY. (78) - SPRAYING

1

NSS

NOT SOLD SEPARAT

PUMP, HYPRO.

1шт.

See Fig. 09-108

1шт.

2

BN73780

NIPPLE

2" x 1.5 Red Poly

1шт.

3

BN304320

FILTER STRAINER,2" x 2" Y Strainer

line, 2, 12 mesh

1шт.

4

BN314241

MANIFOLD,2" Full Port Flange x 2" Male NPT, Poly

2" MPT x 2" Flange, Poly

2шт.

5

BN313773

CLAMP,2" Full Port

2" Flange

1шт.

6

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

1шт.

7

BN318600

FITTING,2" Full Flange x 2" Hose Barb, Poly

2" Full Flange X 2" Hose Barb, Poly

1шт.
