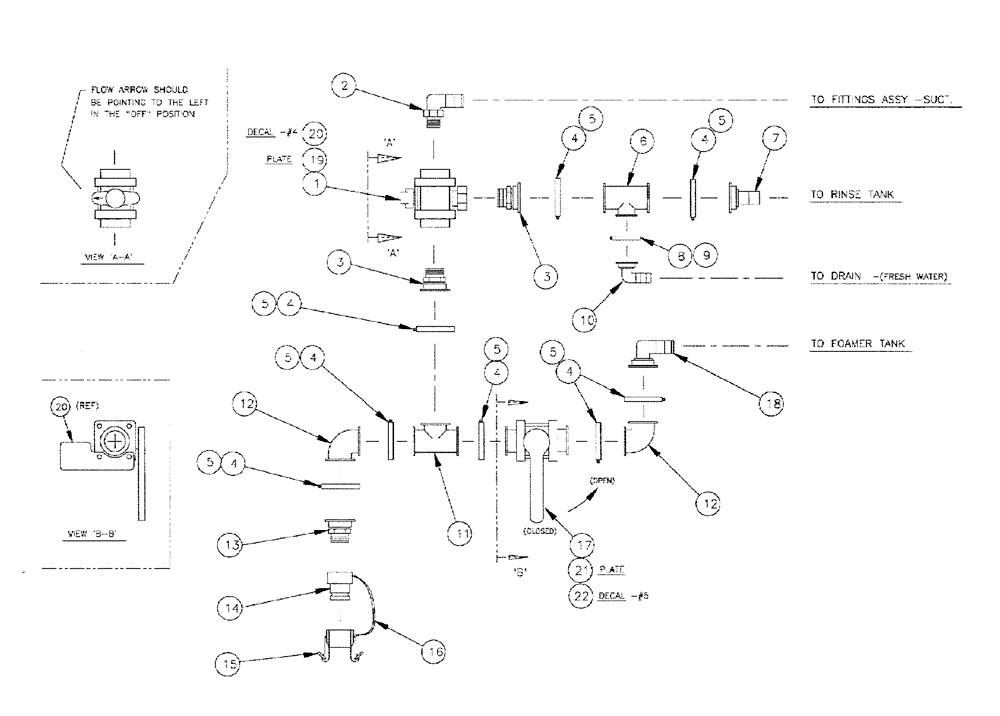

Запчасти Case IH SPX3200 (09-024) - VALVE ASSEMBLY, RINSEAND FOAM, SUCTION (ELLIP TANK) (78) - SPRAYING

1

BN69410

VALVE,3/8-16 Banjo Bolt X 20MM Long Zinc Plt.

3-way, 1.5" Black

1шт.

2

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

1шт.

3

BN303190

FITTING,2" Flange x 1-1/2" NPT, Poly

2" Flange x 1-1/2" NPT, Poly

2шт.

4

BN303199

CLAMP,2" Flange

2" Standard Flange

7шт.

5

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

7шт.

6

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

2" Flange x 2" Flange x 1" Flange, Poly

1шт.

7

BN306900

FITTING,2" Flange x 1-1/4" Hose Barb, Poly

2” Flange x 1 1/4" Hose Barb

1шт.

8

BN303203

CLAMP,1" Flange

1FL

1шт.

9

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1" x 7/32" thick

1шт.

10

405785A1

ELBOW

poly 90º 1" flange x 3/4" hb

1шт.

11

405779A1

TEE,2" Port Flanged Tee

Poly 2" Flange Manifold

1шт.

12

405782A1

COUPLING,2" x 2" 90 Degree Short Flange

poly 90º 2" flange x 2" flange coupling, short

2шт.

13

BN303185

ADAPTER,2" Flange x 2" Male NPT, Poly

2" Flange x 2" NPT

1шт.

14

BN304330

ADAPTER

2" Cam X 2" NPT

1шт.

15

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever

1шт.

16

BN322573

SECURING STRAP

lanyard, rubber

1шт.

17

405800A1

VALVE,2" Flange Ball Valve

ball 2" flange bolted

1шт.

18

BN303189

FITTING,2" Flange x 1-1/4" 90 Degree Hose Barb Elbow

2" Flange x 1-1/4" Hose Barb, Poly

1шт.

19

BN320997

BRACKET

Decal Mount (SS)

1шт.

20

343079A1

DECAL

Valve, Load and Unload

1шт.

21

BN323132

DECAL, plate MTG. (SS)

1шт.

22

BN323135

DECAL

valve, fill, (foamer)

1шт.
