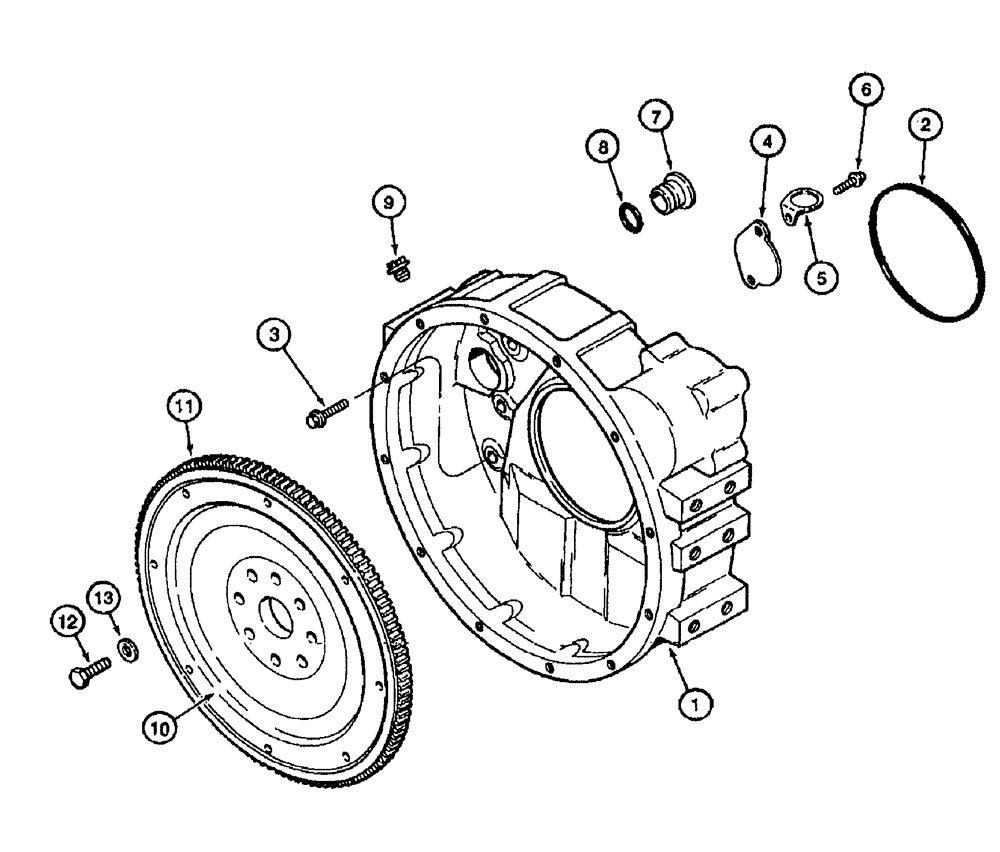

Запчасти Case IH SPX3200 (03-006) - FLYWHEEL AND HOUSING (10) - ENGINE

1

J937426

HOUSING

FLYWHEEL

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING FLYWHEEL, Serial Range: hoisting-block

1шт.

3

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

8шт.

4

J925234

PLATE

COVER

1шт.

5

J928989

CLIP

RETAINING

1шт.

6

J912072

SELF-TAP SCREW

8 -1.25 x 15mm

2шт.

7

J910248

PLUG

FLYWHEEL, housingsealing

1шт.

8

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

9

353-225

PLUG,Sltd Hd, 3/4"-16

1шт.

10

J936822

FLYWHEEL WITH GEAR

ASSEMBLY, engine

1шт.

11

J905427

GEAR

RING

1шт.

12

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

13

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

flat, special

8шт.
